_____________________

PIPELINE
SERIES

_____________________

LINEAR
SYSTEMATIC
INFINITE




PIPELINE SERIES


______

The Pipeline series begins with a linear LED light, elegant in its simplicity; however what sets it apart is the ability to expand the scale of the fixture by multiplying the modular pendant, creating an infinite range of tailored lights.

Due to the modularity of the Pipeline series it is easily customized to be tailored to a wide variety of applications.




For design support/questions regarding customization of the Pipeline series, please inquire at info@andlight.ca




SERIES:







______

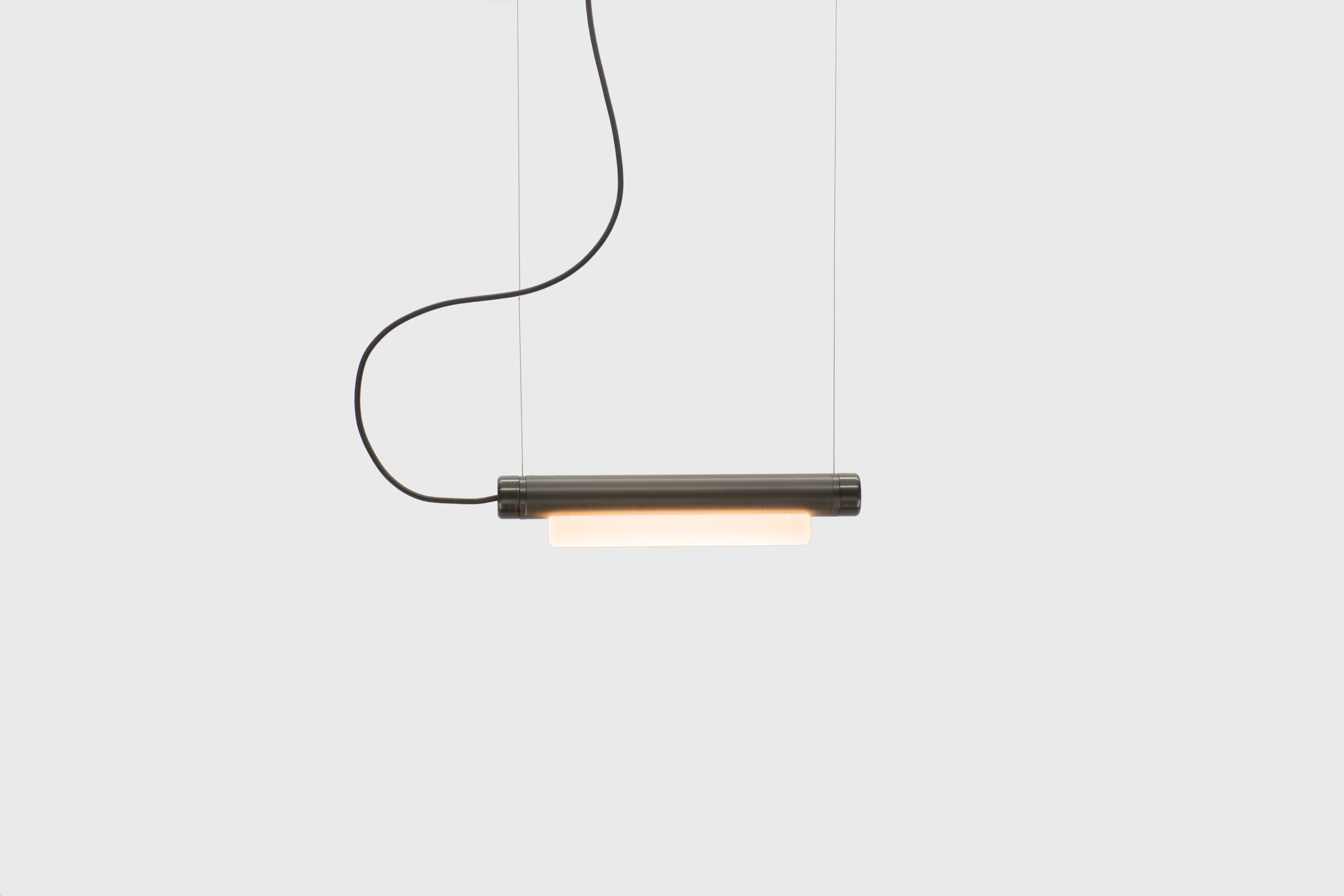

PIPELINE 40

PENDANT


DESIGNER: CAINE HEINTZMAN, 2012

Stark, elegant, and resolute, The Pipeline 40 pendant lamp suspends horizontally from 1mm thin aircraft cables, creating the illusion of floating in air. The understated fixture uniformly emits a wide horizontal beam of light through a specially developed diffuser designed to soften LED light while maximizing output.

The Pipeline pendant may be suspended horizontally level or at angles, individually or in multiples and undoubtedly makes a favourable impression within the space it inhabits.



CUT SHEET︎︎︎


QUICK LINKS ︎

︎ INSTRUCTIONS — North America
︎ INSTRUCTIONS — World Market

︎ WORKBOOK

︎ IMAGE REQUEST

︎ 3D/REVIT/IES FILE REQUEST

︎ PURCHASE INQUIRY












DIMENSIONS
42 x 7.5 x 5 cm / 16.5” x 3“ x 2”

MATERIALS
Aluminum Body

Cast Acrylic

MANUFACTURED
Canada

ELECTRICAL
5W LED
47,000 hour Lifetime
90+ CRI
Input Voltage 100–240V + 227V
Integral 24V DC power supply included
Dimming Options: MLV, 0–10, Dali


COLOUR TEMPERATURE




CERTIFICATIONS


FINISHES


BLACK (BK)




WHITE (WH)




RAW (RA)



CUSTOM

We are happy to support and collaborate further customization of our luminaires for larger scale projects.

For further enquiries, please get in touch with us at info@andlight.ca






COPPER (CP)



BRASS (BR)



CHROME (CH)

CANOPY

6” Ø / 15cm x 5cm / 6” x 2”





PIPELINE
40, PENDANT, WHITE

PIPELINE 40, PENDANT, BRASS

PIPELINE 40, PENDANT, WHITE

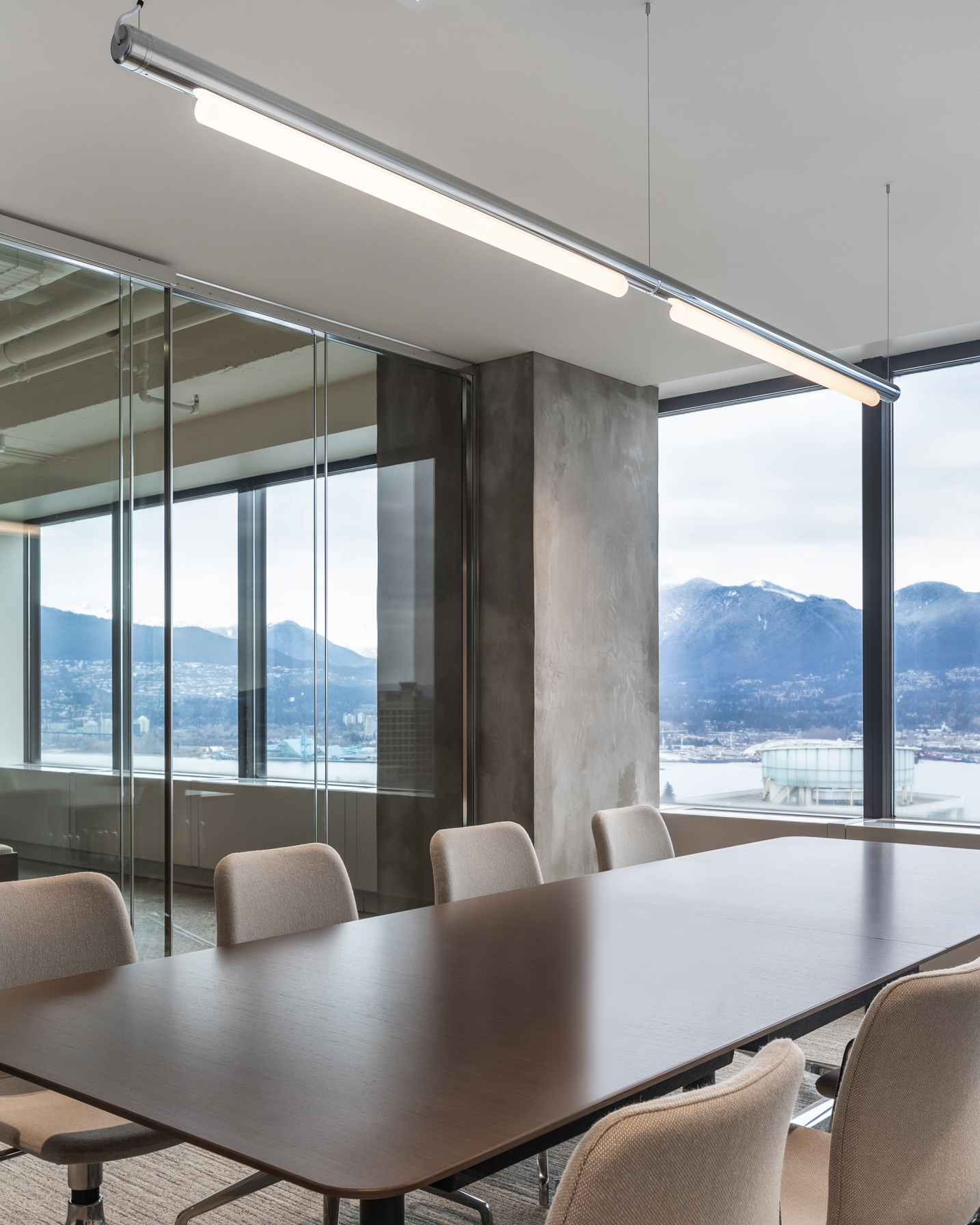

SEE THE PIPELINE IN USE ︎ PROJECTS





______

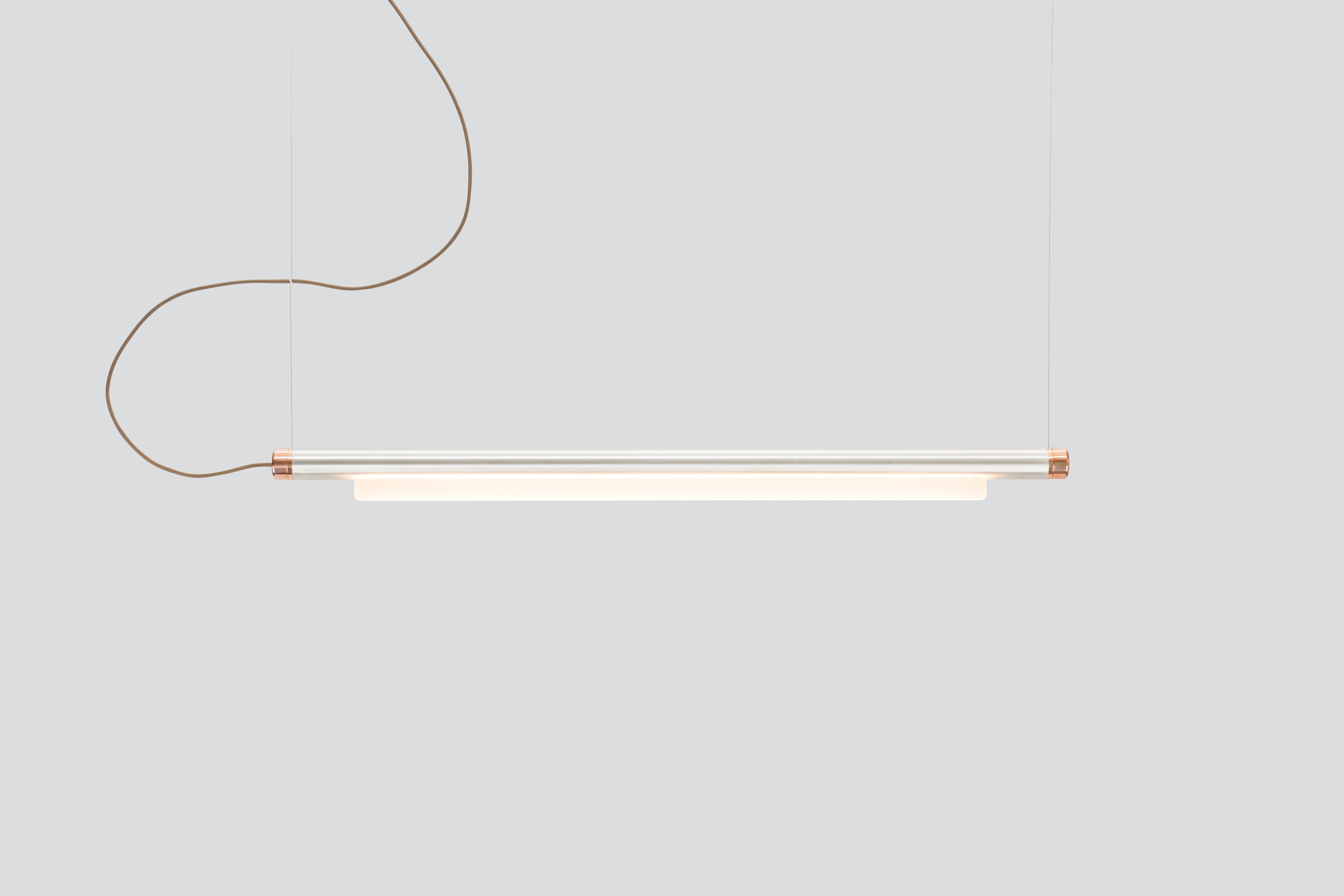

PIPELINE 125

PENDANT


DESIGNER: CAINE HEINTZMAN, 2012

Stark, elegant, and resolute, The Pipeline 125 pendant lamp suspends horizontally from 1mm thin aircraft cables, creating the illusion of floating in air. The understated fixture uniformly emits a wide horizontal beam of light through a specially developed diffuser designed to soften LED light while maximizing output.

The Pipeline pendant may be suspended horizontally level or at angles, individually or in multiples and undoubtedly makes a favourable impression within the space it inhabits.


CUT SHEET︎︎︎


QUICK LINKS ︎

︎ INSTRUCTIONS — North America
︎ INSTRUCTIONS — World Market

︎ WORKBOOK

︎ IMAGE REQUEST

︎ 3D/REVIT/IES FILE REQUEST

︎ PURCHASE INQUIRY












DIMENSIONS
125 x 7.5 x 5cm /
49.5” x 3“ x 2”


MATERIALS
Aluminum Body

Cast Acrylic

MANUFACTURED
Canada

ELECTRICAL
15W LED
47,000 hour Lifetime
90+ CRI
Input Voltage 100–240V + 227V
Integral 24V DC power supply included
Dimming Options: MLV, 0–10, Dali


COLOUR TEMPERATURE





CERTIFICATIONS


FINISHES


BLACK (BK)




WHITE (WH)




RAW (RA)



CUSTOM

We are happy to support and collaborate further customization of our luminaires for larger scale projects.

For further enquiries, please get in touch with us at info@andlight.ca






COPPER (CP)



BRASS (BR)



CHROME (CH)

CANOPY

6” Ø / 15cm x 5cm / 6” x 2”






PIPELINE
125, PENDANT, WHITE

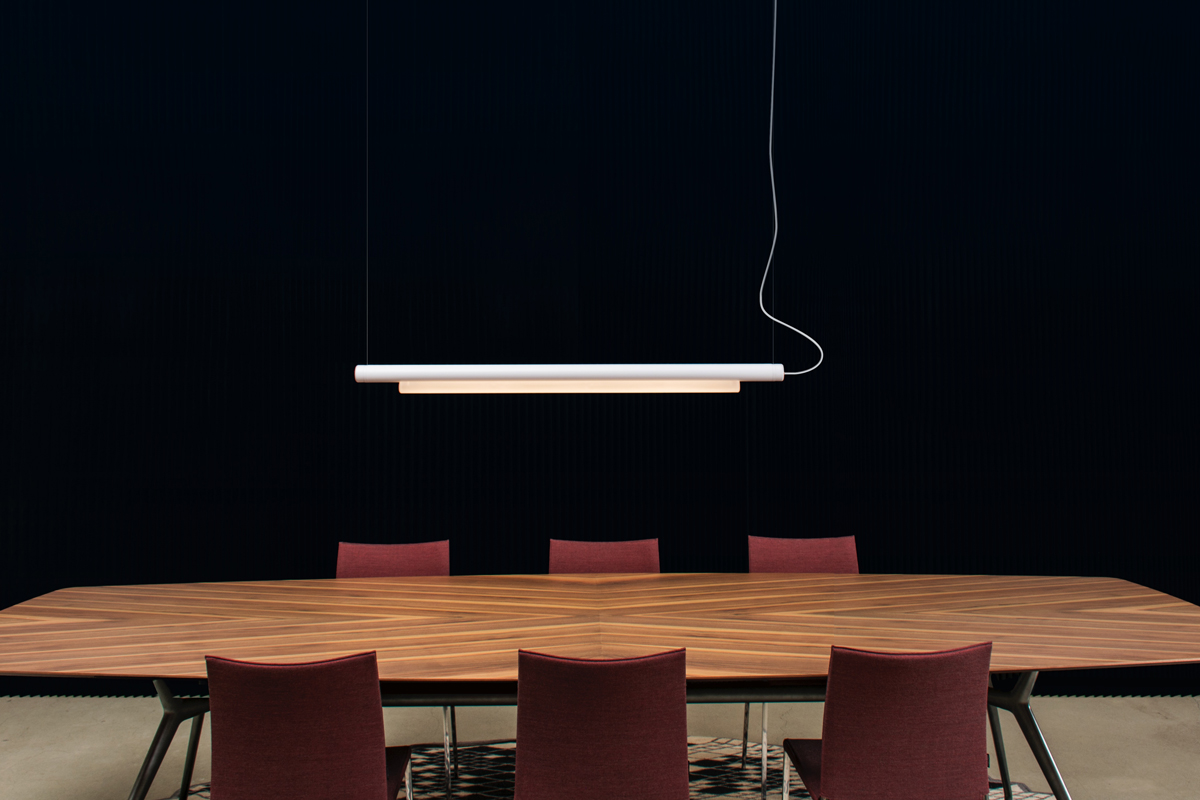

PIPELINE 125, PENDANT, WHITE

PIPELINE 125, PENDANT, BLACK





SEE THE PIPELINE IN USE ︎ PROJECTS




______

PIPELINE LINEAR

PENDANT


DESIGNER: CAINE HEINTZMAN, 2012

Stark, elegant, and resolute, The Pipeline Linear pendant lamp suspends horizontally from 1mm thin aircraft cables, creating the illusion of floating in air. The  fixture uniformly emits a wide horizontal beam of light through a specially developed diffuser designed to soften LED light while maximizing output.

The Pipeline pendant may be suspended horizontally level or at angles, individually or in multiples and undoubtedly makes a favourable impression within the space it inhabits.



CUT SHEETS︎︎︎

125.2 | 125.3 | 125.4 | 125.5

QUICK LINKS ︎

︎ INSTRUCTIONS — North America
︎ INSTRUCTIONS — World Market

︎ WORKBOOK

︎ IMAGE REQUEST

︎ 3D/REVIT/IES FILE REQUEST

︎ PURCHASE INQUIRY
















DIMENSIONS
125.2:  246 x 7.5 x 5cm / 97” x 3“ x 2”


125.3:  366.2 x 7.5 x 5cm / 144.2” x 3“ x 2”

125.4:  486.5 x 7.5 x 5cm / 191.5” x 3“ x 2”

125.5:  606.6 x 7.5 x 5cm / 238.8” x 3“ x 2”


MATERIALS
Aluminum Body

Cast Acrylic

MANUFACTURED
Canada

ELECTRICAL
125.2: 34W LED
125.3: 51W LED
125.4: 68W LED
125.5: 85W LED


47,000 hour Lifetime
90+ CRI
Input Voltage 100–240V + 227V
Integral 24V DC power supply included
Dimming Options: MLV, 0–10, Dali


COLOUR TEMPERATURE





CERTIFICATIONS


FINISHES


BLACK (BK)




WHITE (WH)




RAW (RA)



CUSTOM

We are happy to support and collaborate further customization of our luminaires for larger scale projects.

For further enquiries, please get in touch with us at info@andlight.ca






COPPER (CP)



BRASS (BR)



CHROME (CH)

CANOPY

6” Ø / 15cm x 5cm / 6” x 2”





PIPELINE

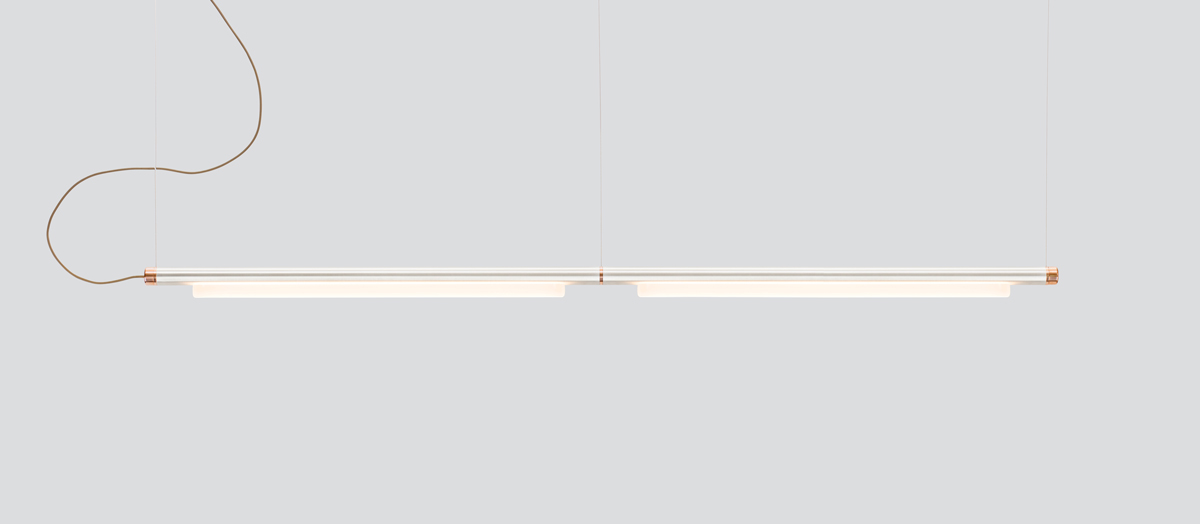

125.2, PENDANT, COPPER

PIPELINE

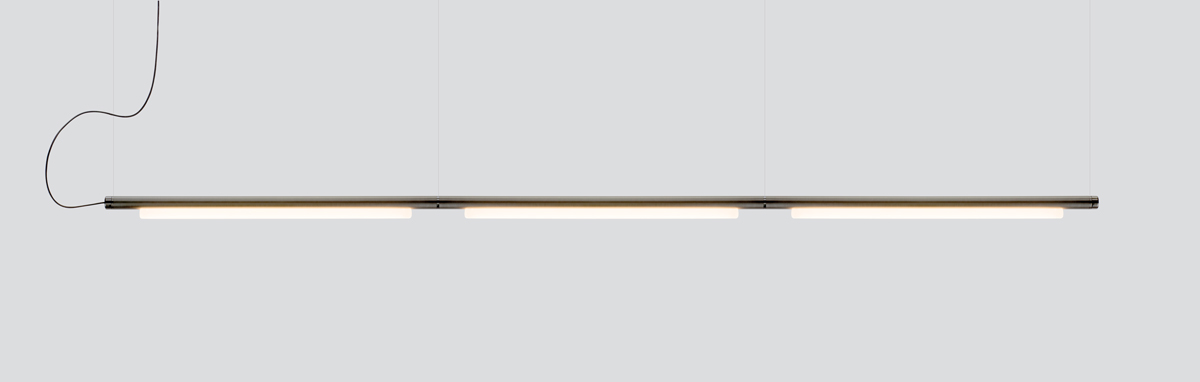

125.3, PENDANT, BLACK


PIPELINE
125.3, PENDANT, WHITE






SEE THE PIPELINE IN USE ︎ PROJECTS






______

PIPELINE CM

PENDANT


DESIGNER: CAINE HEINTZMAN, 2012

The series applies the modular capability of the Pipeline series design, utilizing combinations of parts to create unique configurations such as ‘S’ curves, loops, and larger angular arrangements which suit an array of functional and decorative applications.






















DIMENSIONS
Model Specific

MATERIALS
Aluminum Body

Cast Acrylic

MANUFACTURED
Canada

ELECTRICAL
CM1: 10W LED
CM2:
20W LED
CM3:
30W LED
CM4:
40W LED
CM5:
20W LED
CM6:
30W LED
CM7:
60W LED
CM8:
70W LED
CM9:
2 x 45W LED


47,000 hour Lifetime
90+ CRI
Input Voltage 100–240V + 227V
Integral 24V DC power supply included
Dimming Options: MLV, 0–10, Dali


COLOUR TEMPERATURE





CERTIFICATIONS


FINISHES


BLACK (BK)




WHITE (WH)




RAW (RA)



CUSTOM

We are happy to support and collaborate further customization of our luminaires for larger scale projects.

For further enquiries, please get in touch with us at info@andlight.ca






COPPER (CP)



BRASS (BR)



CHROME (CH)

CANOPY

6” Ø / 15cm x 5cm / 6” x 2”





PIPELINE
CM2, PENDANT, BLACK

PIPELINE
CM4, PENDANT, BLACK


PIPELINE
CM3, PENDANT, BRUSHED, COPPER






SEE THE PIPELINE IN USE ︎ PROJECTS










______

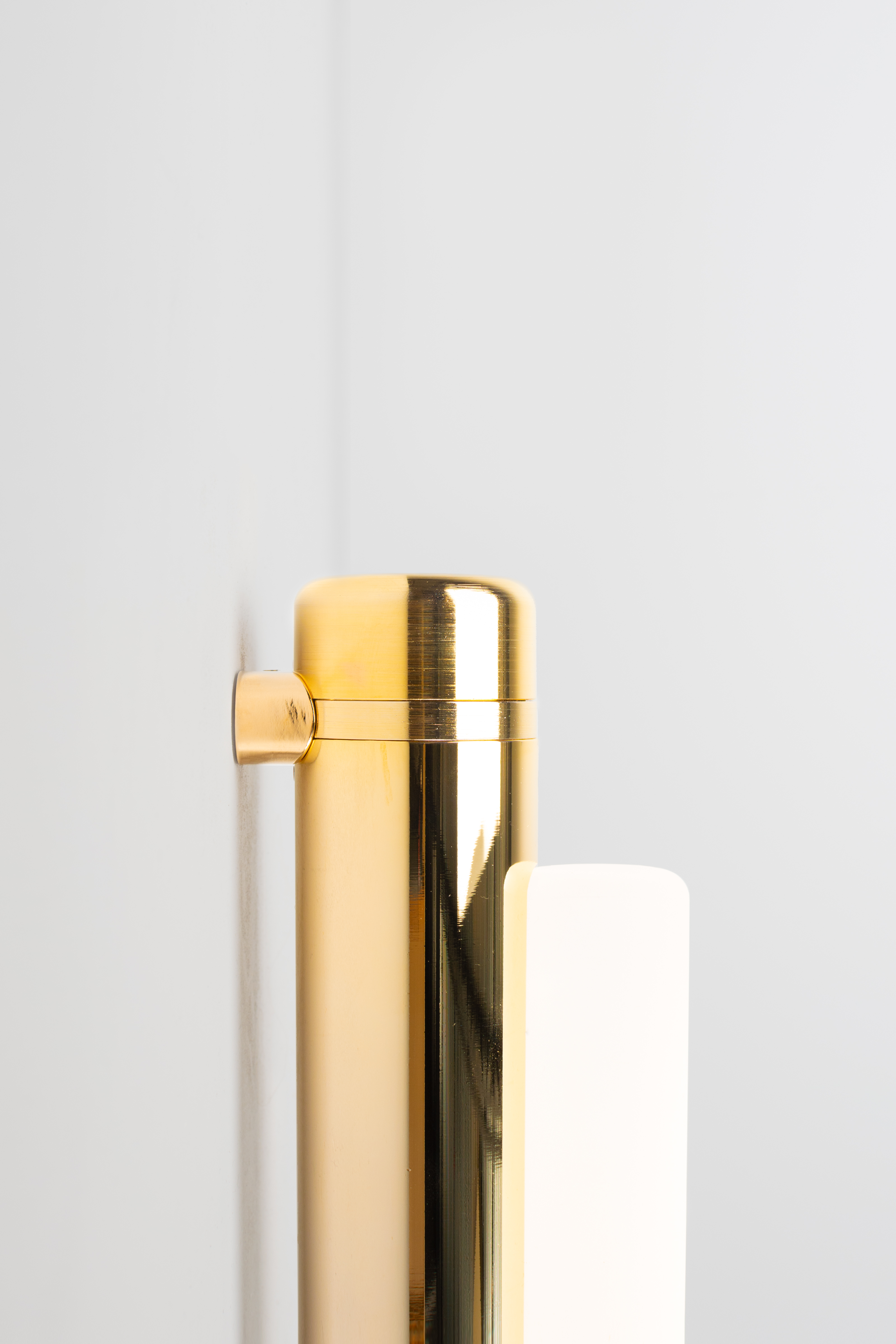

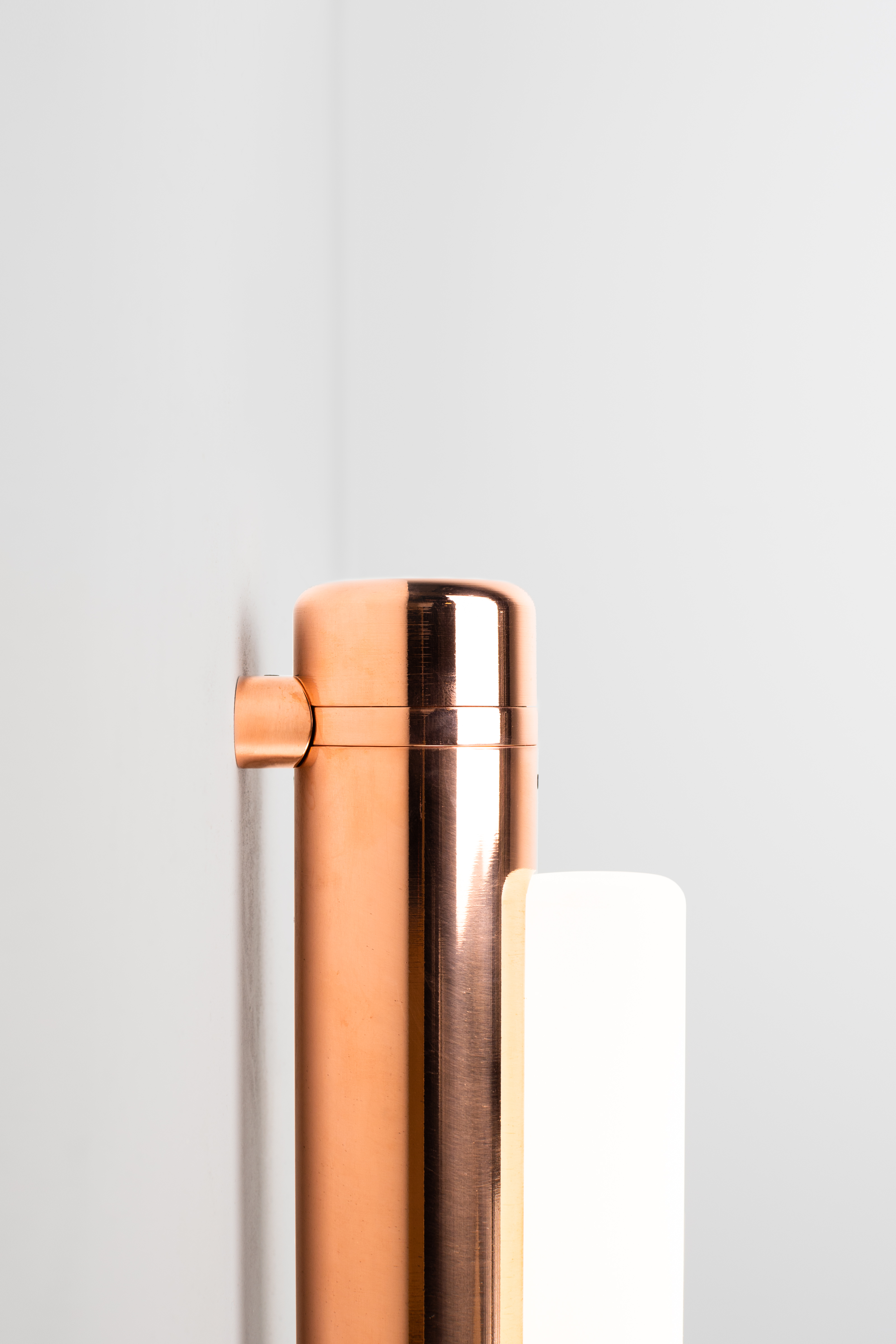

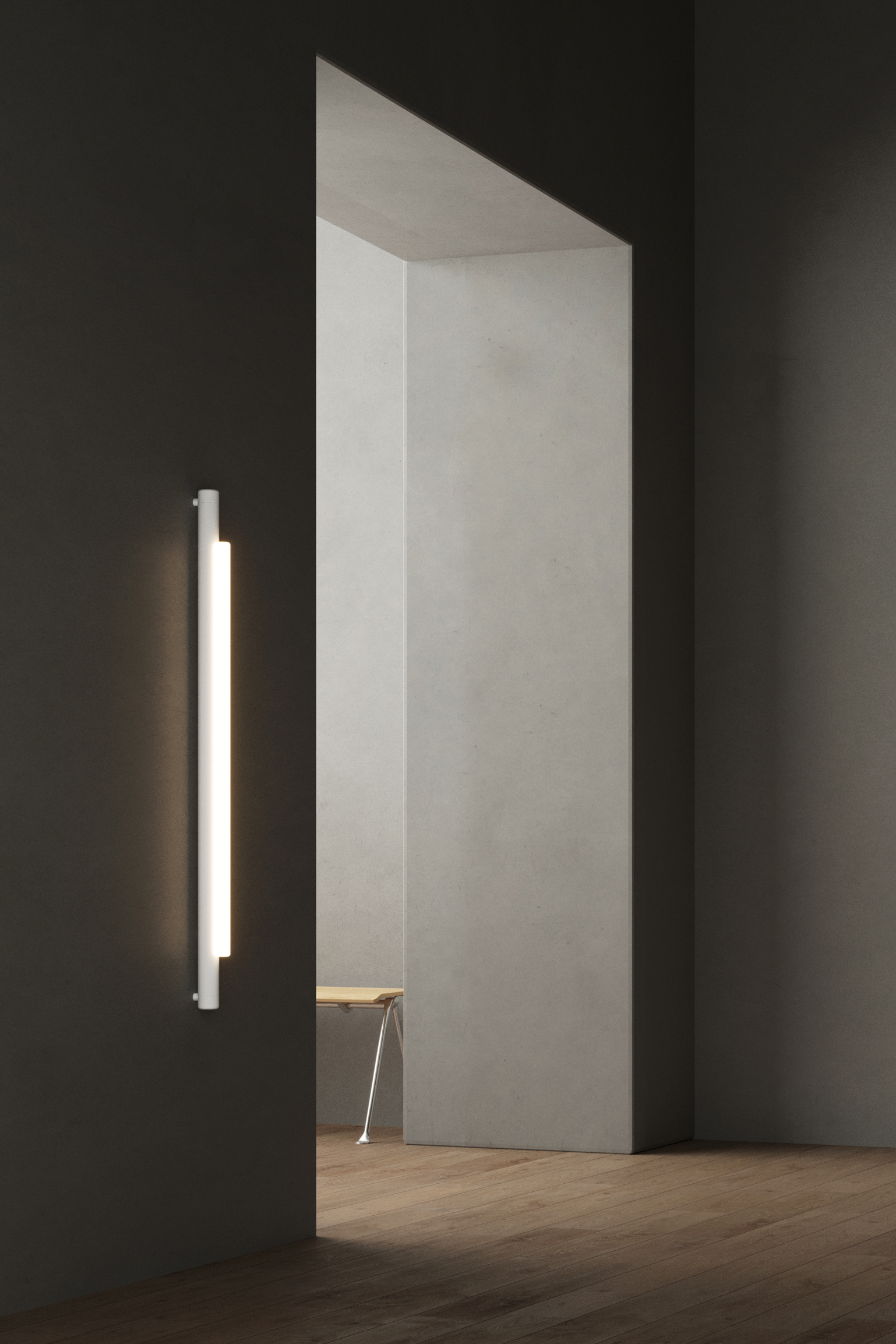

PIPELINE 40

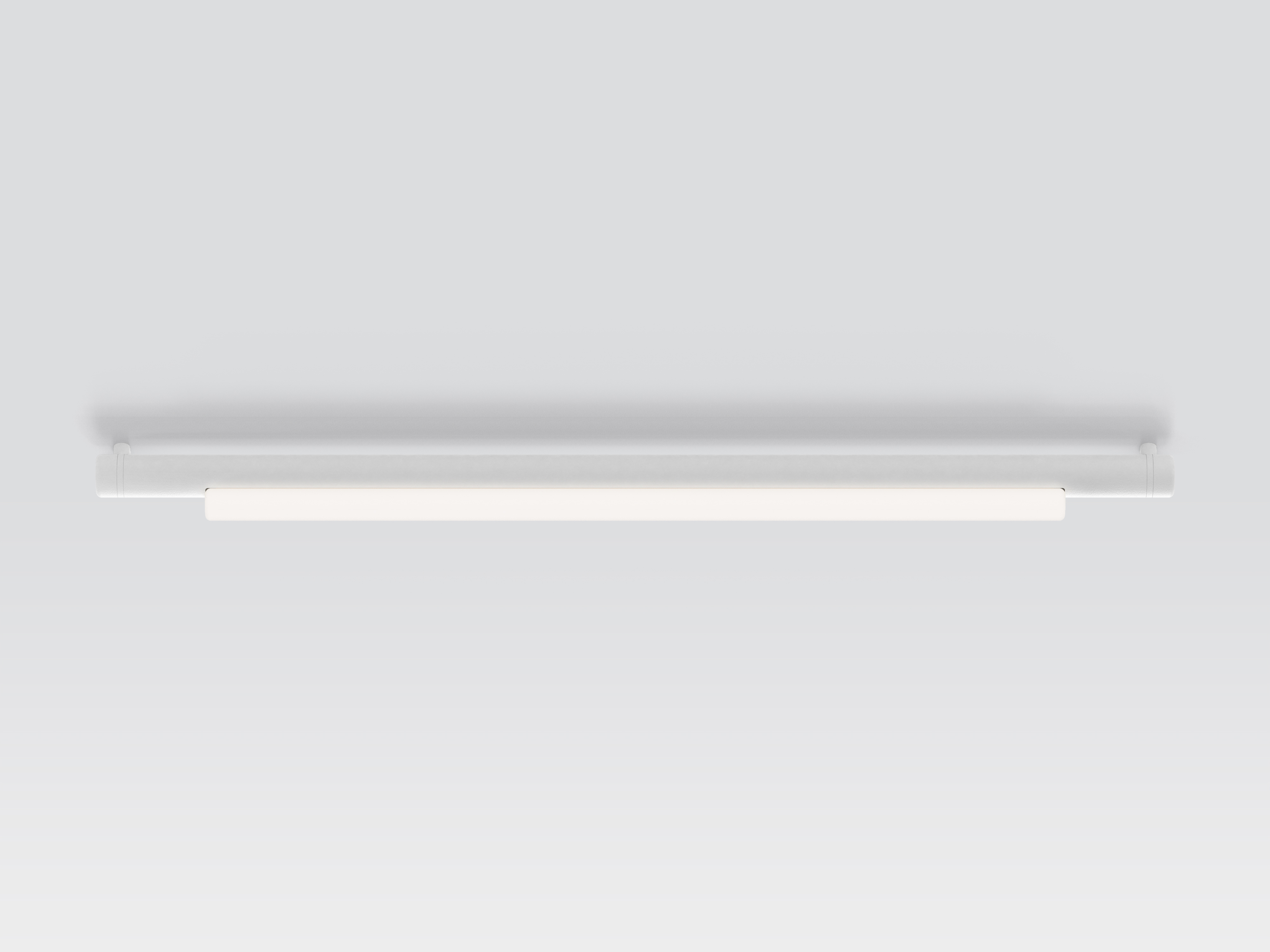

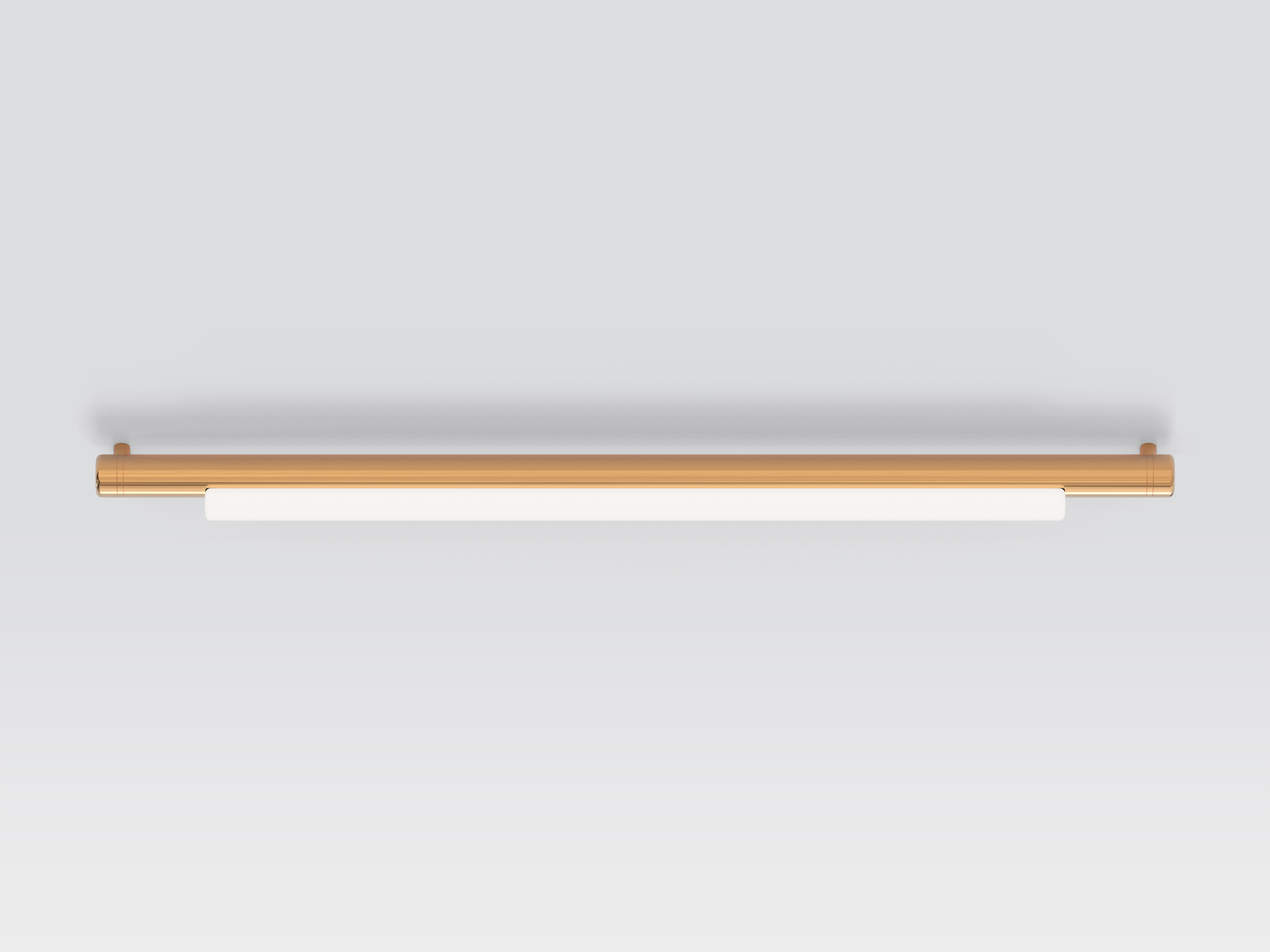

PIPELINE 125

CEILING/WALL


DESIGNER: CAINE HEINTZMAN, 2021

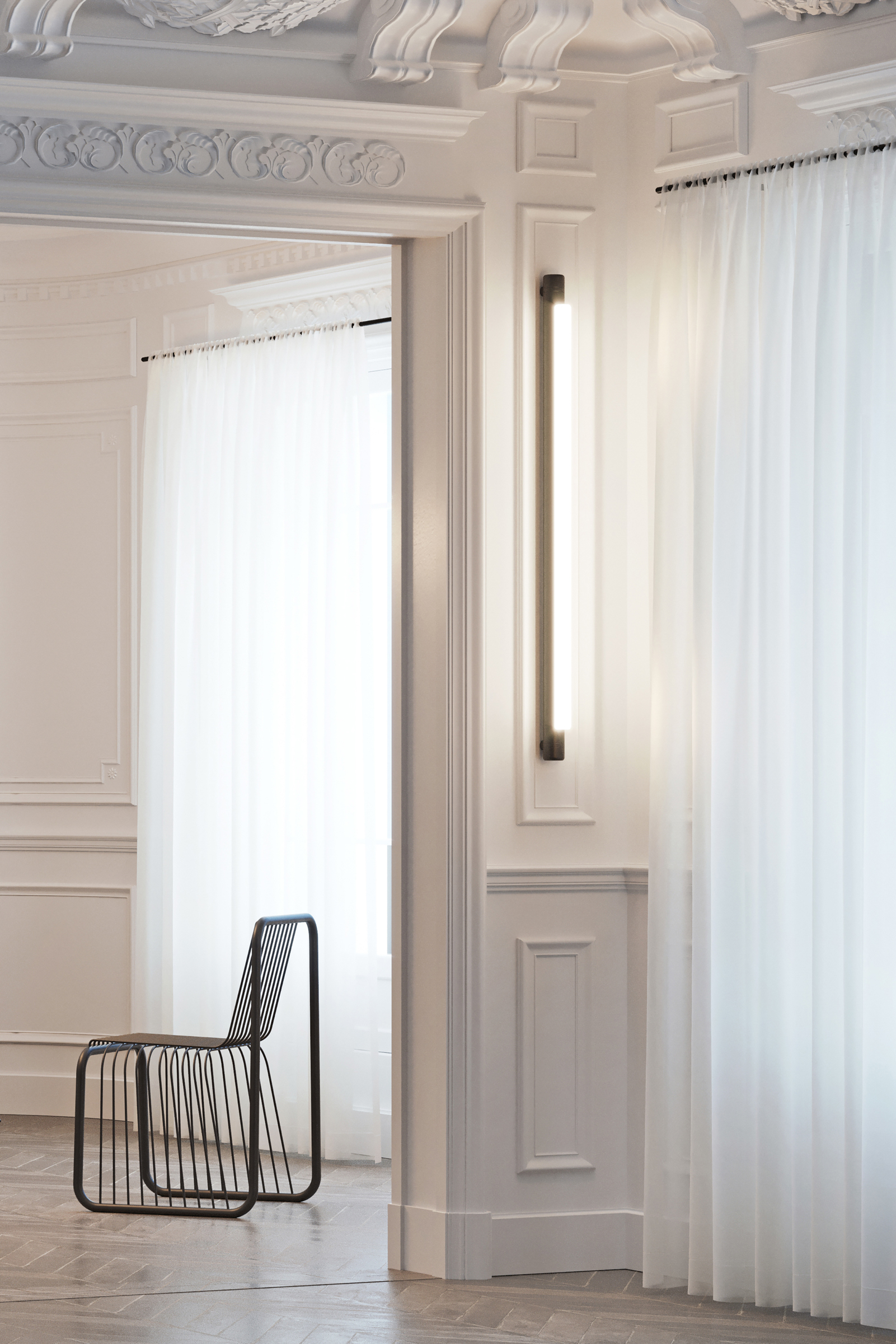

Designed to serve and enhance architectural spaces, the Pipeline Ceiling/Wall provides accent lighting while becoming an integral element of the space itself. As a surface mounted luminaire, its space efficiency meets the technical specifications of tighter spaces: lower ceiling, corners and corridors, or the need for wall mounted light.


CUT SHEET︎︎︎

40 | 125

QUICK LINKS ︎

︎ INSTRUCTIONS — North America
︎ INSTRUCTIONS — World Market

︎ PRESS KIT

︎ WORKBOOK

︎ IMAGE REQUEST

︎ 3D/REVIT/IES FILE REQUEST

︎ PURCHASE INQUIRY


















DIMENSIONS

CEILING/WALL 40:
42 x 9 x 5 cm / 16.5” x 3.5“ x 2”


CEILING/WALL 125:
125 x 9 x 5cm / 49.5” x 3.5“ x 2”


MATERIALS
Aluminum Body

Cast Acrylic

MANUFACTURED
Canada

ELECTRICAL

CEILING/WALL 40: 5W LED

CEILING/WALL 125:
17W LED


47,000 hour Lifetime
90+ CRI
Input Voltage:
110–120V / 220–240V / 110–277V
Integral 24V DC power supply included
Controls: Phase dimming / 0–10 / DALI


COLOUR TEMPERATURE





CERTIFICATIONS


FINISHES


BLACK (BK)




WHITE (WH)



CUSTOM

We are happy to support and collaborate further customization of our luminaires for larger scale projects.

For further enquiries, please get in touch with us at info@andlight.ca






COPPER (CP)



BRASS (BR)



CHROME (CH)






PIPELINE

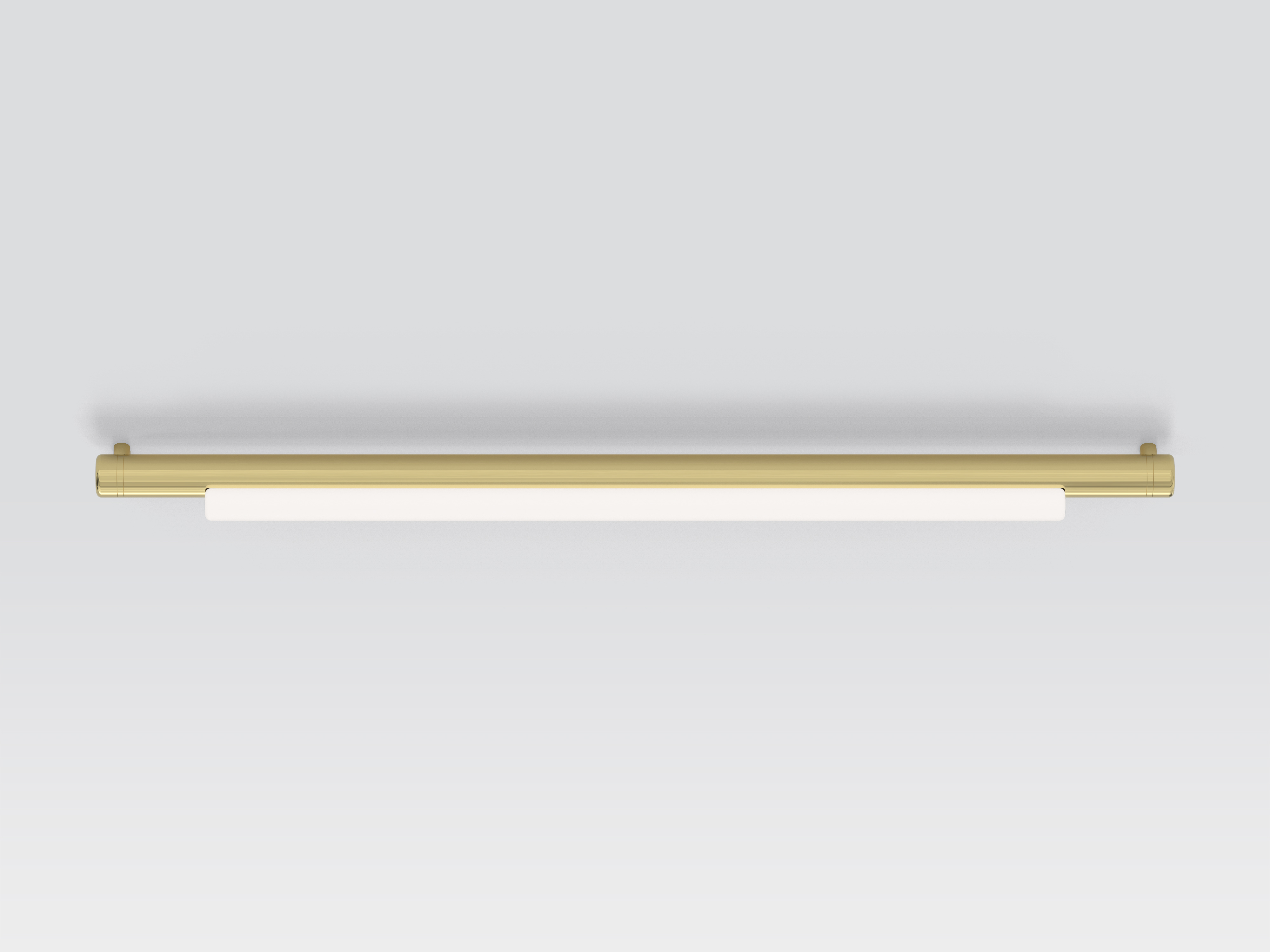

125, CEILING/WALL, VARIOUS FINISHES WITH COVER PLATE

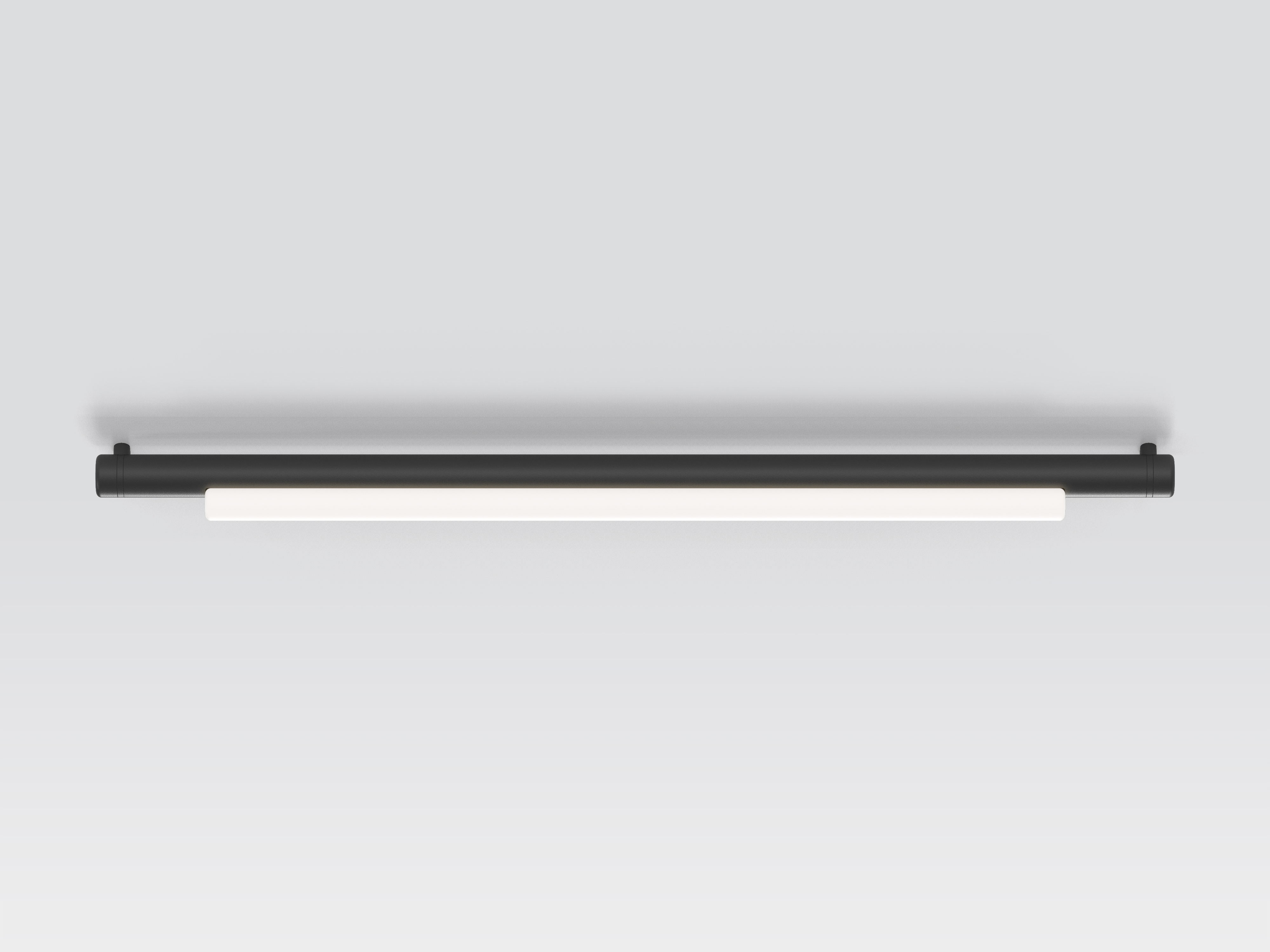

PIPELINE 125, CEILING/WALL, BLACK

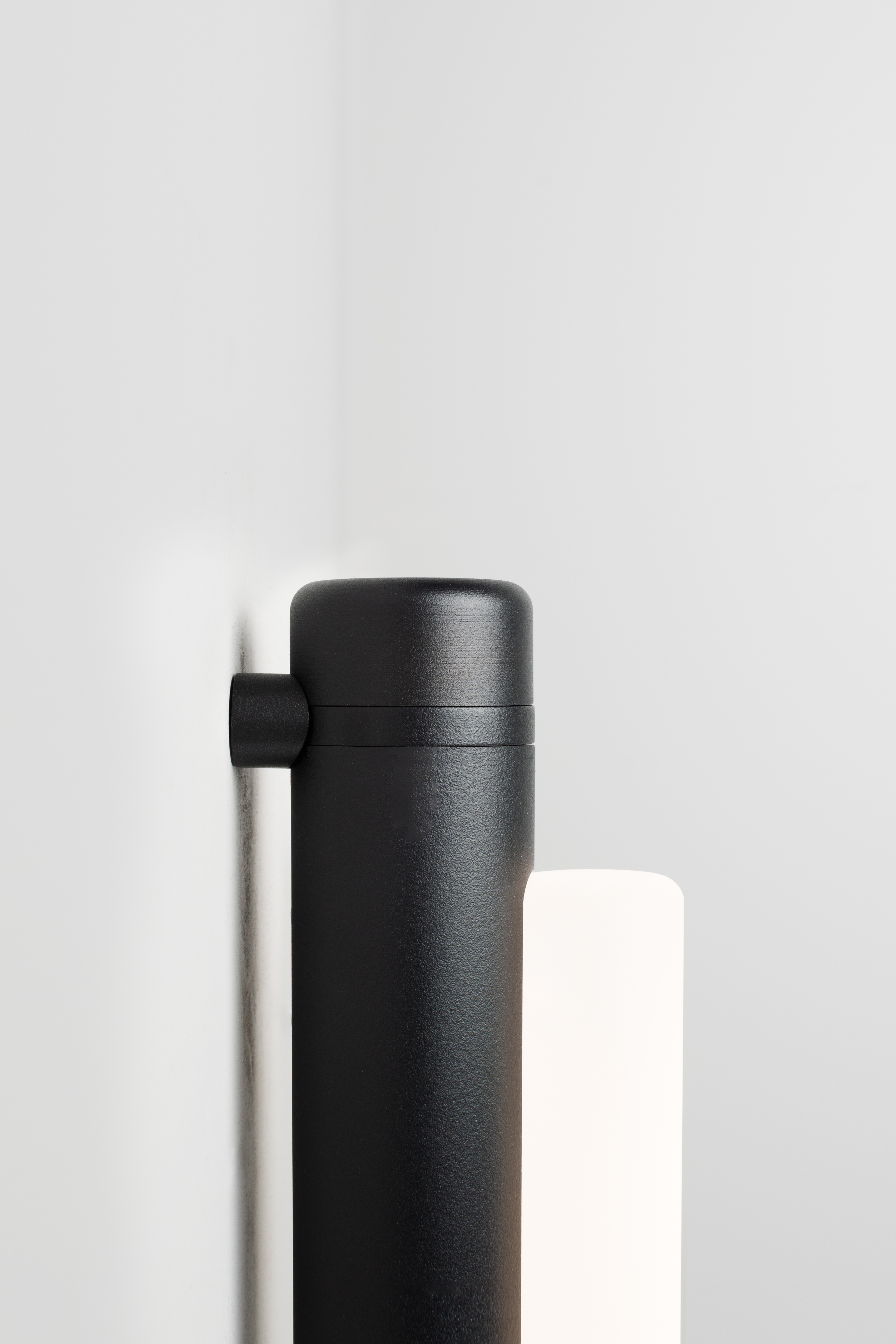

PIPELINE 40, CEILING/WALL, BLACK







SEE THE PIPELINE IN USE ︎ PROJECTS





______

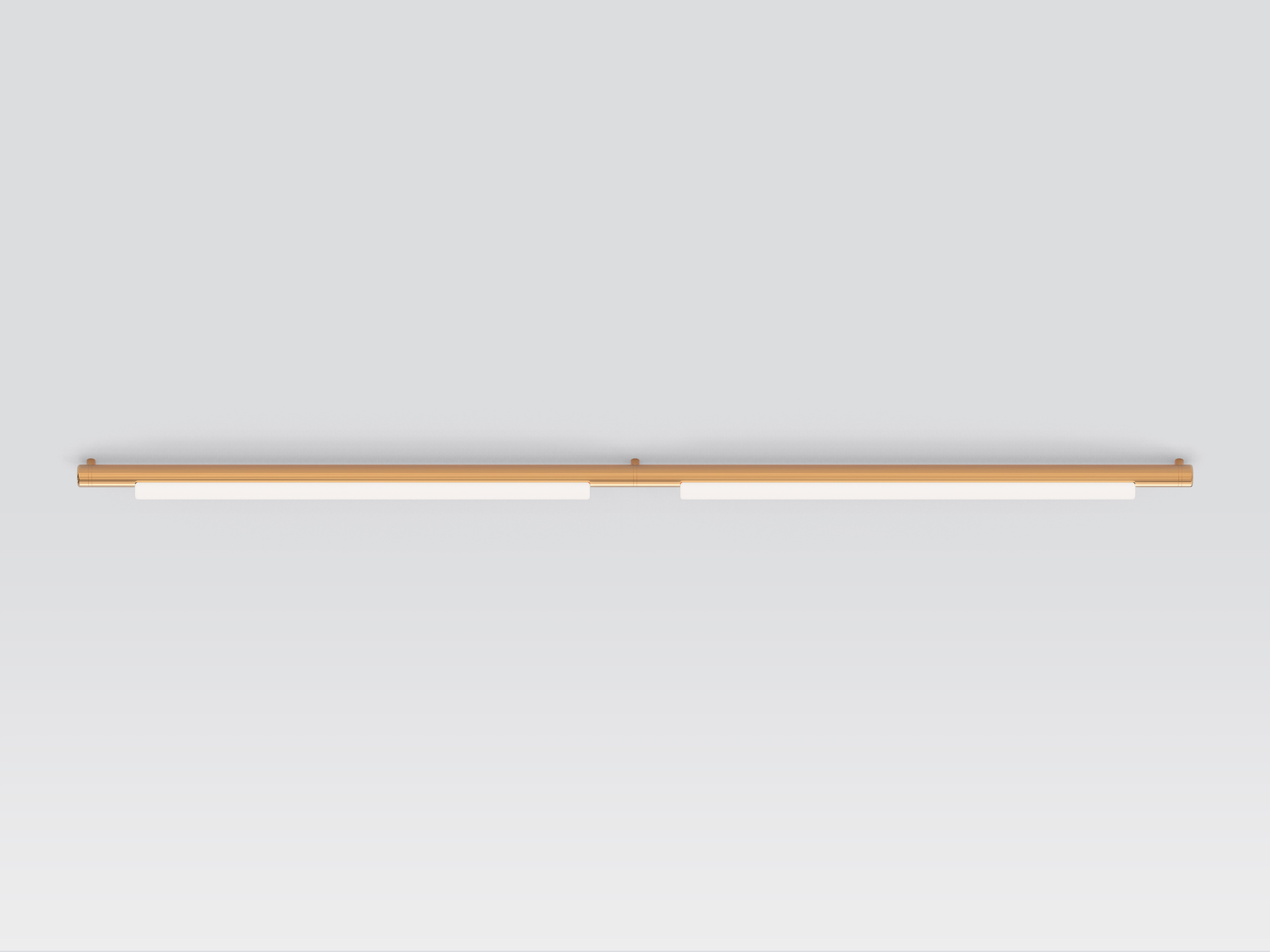

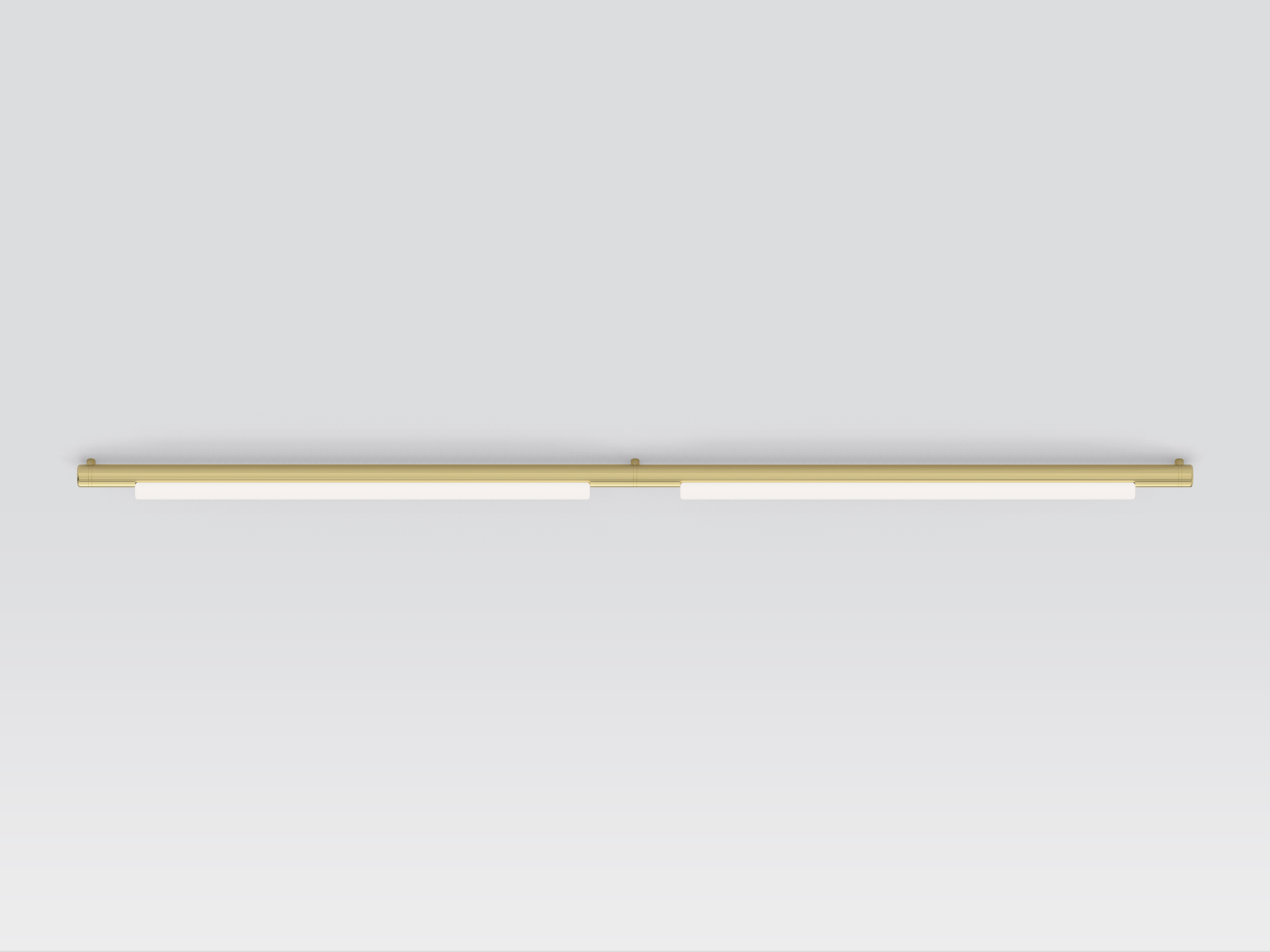

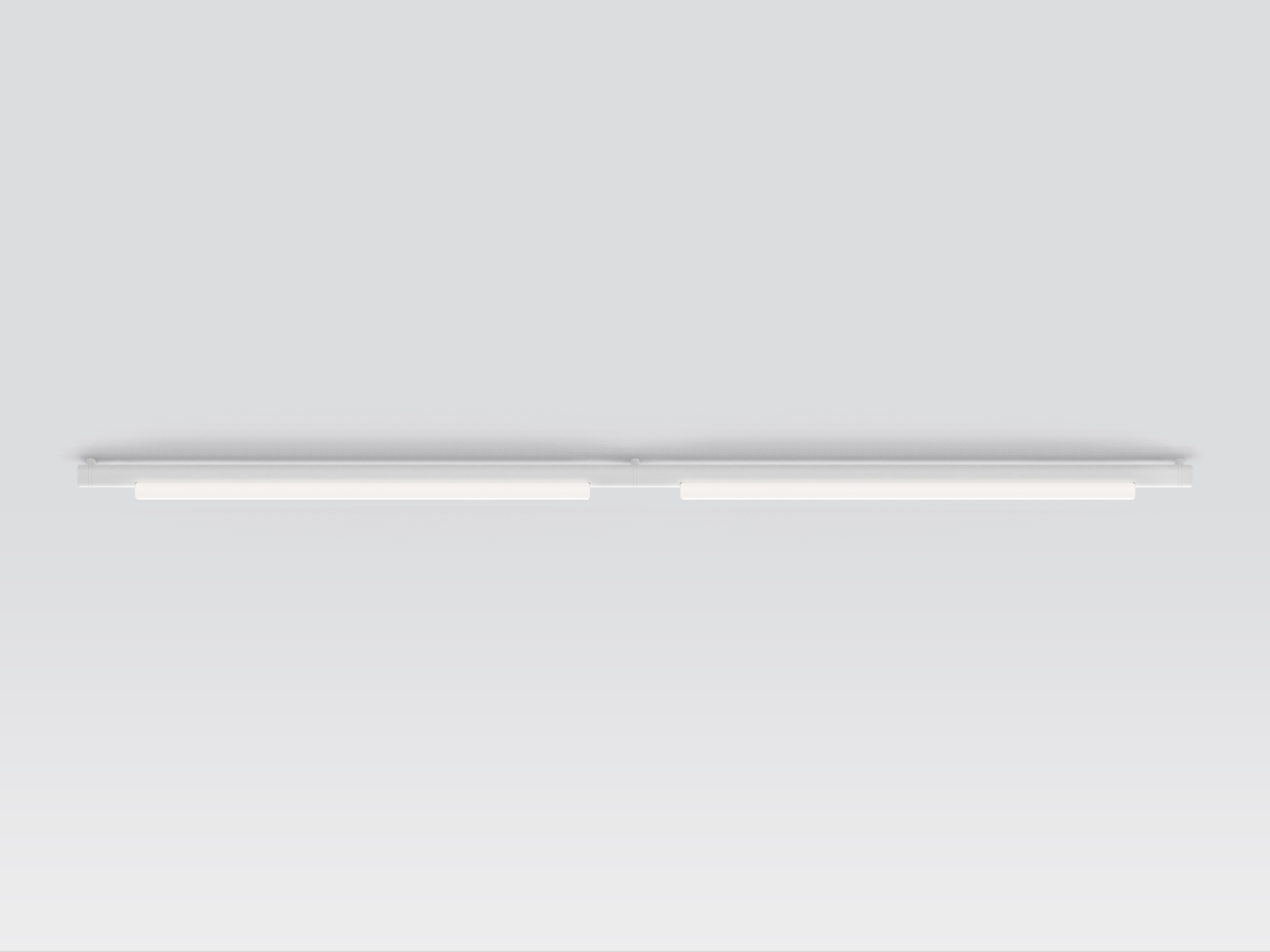

PIPELINE LINEAR SYSTEM

CEILING/WALL


DESIGNER: CAINE HEINTZMAN, 2021

Designed to serve and enhance architectural spaces, the Pipeline Ceiling/Wall provides accent lighting while becoming an integral element of the space itself. As a surface mounted luminaire, its space efficiency meets the technical specifications of tighter spaces: lower ceiling, corners and corridors, or the need for wall mounted light.



CUT SHEETS︎︎︎

125.2 | 125.3 | 125.4 | 125.5

QUICK LINKS ︎

︎ PRESS KIT

︎ WORKBOOK

︎ IMAGE REQUEST

︎ 3D/REVIT/IES FILE REQUEST

︎ PURCHASE INQUIRY
















______

PIPELINE CM SYSTEM

CEILING/WALL


DESIGNER: CAINE HEINTZMAN, 2021

Designed to serve and enhance architectural spaces, the Pipeline Ceiling/Wall provides accent lighting while becoming an integral element of the space itself. As a surface mounted luminaire, its space efficiency meets the technical specifications of tighter spaces: lower ceiling, corners and corridors, or the need for wall mounted light.



CUT SHEETS︎︎︎

CM1 |  CM2 |  CM3
CM4 |  CM5 |  CM6
CM7 |  CM8


QUICK LINKS ︎

︎ PRESS KIT

︎ WORKBOOK

︎ IMAGE REQUEST

︎ 3D/REVIT/IES FILE REQUEST

︎ PURCHASE INQUIRY

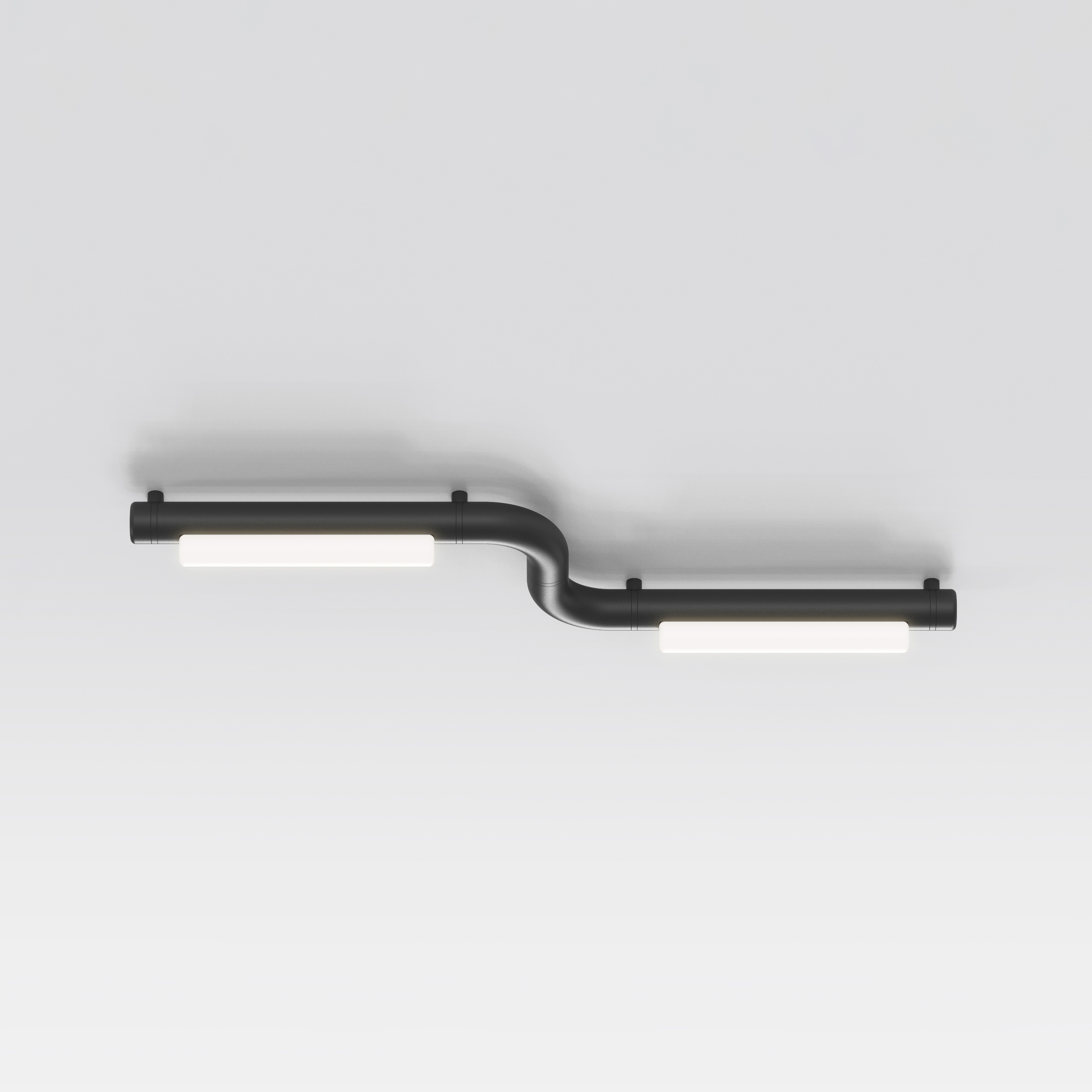

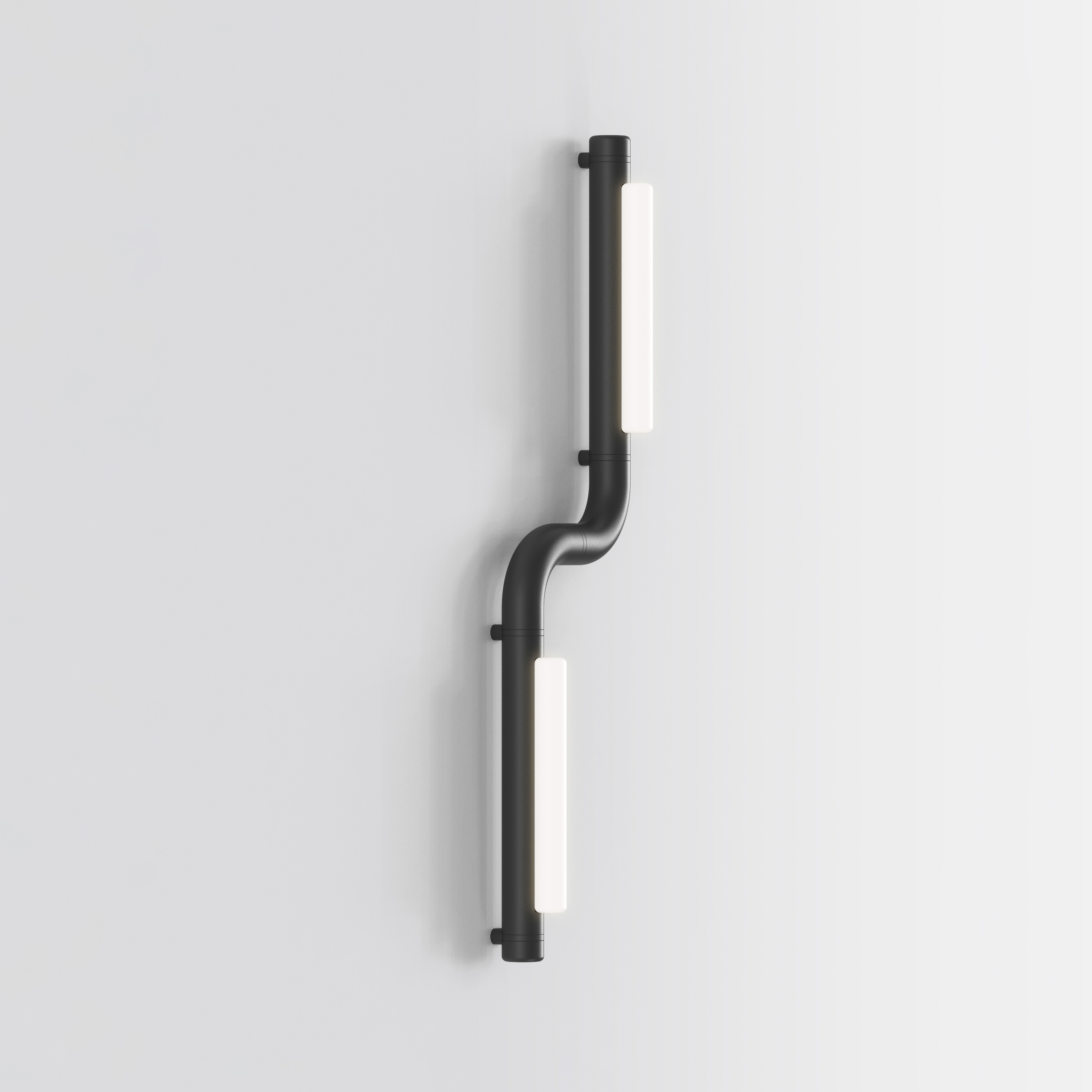

PIPELINE CEILING/WALL, CM1

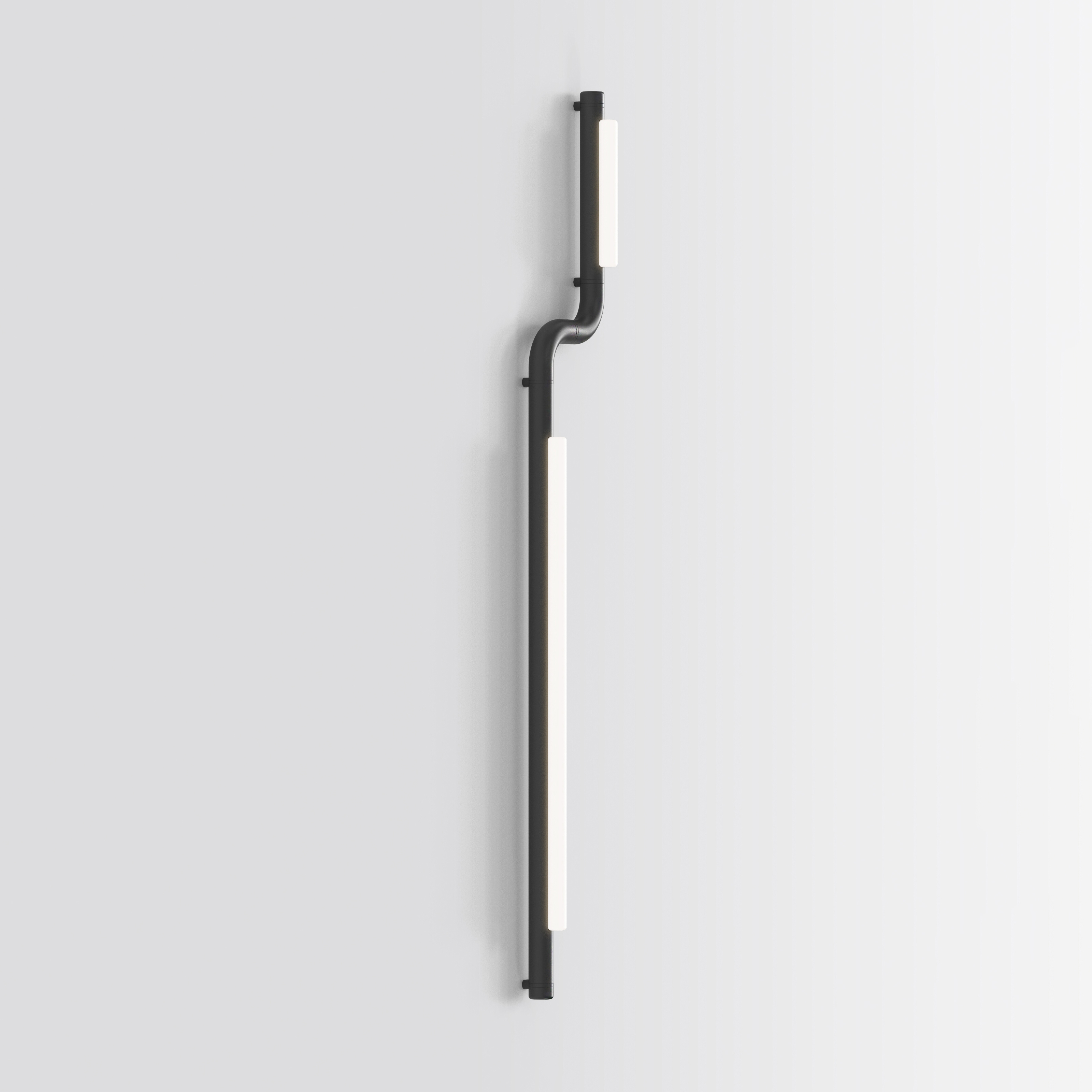

PIPELINE CEILING/WALL, CM2

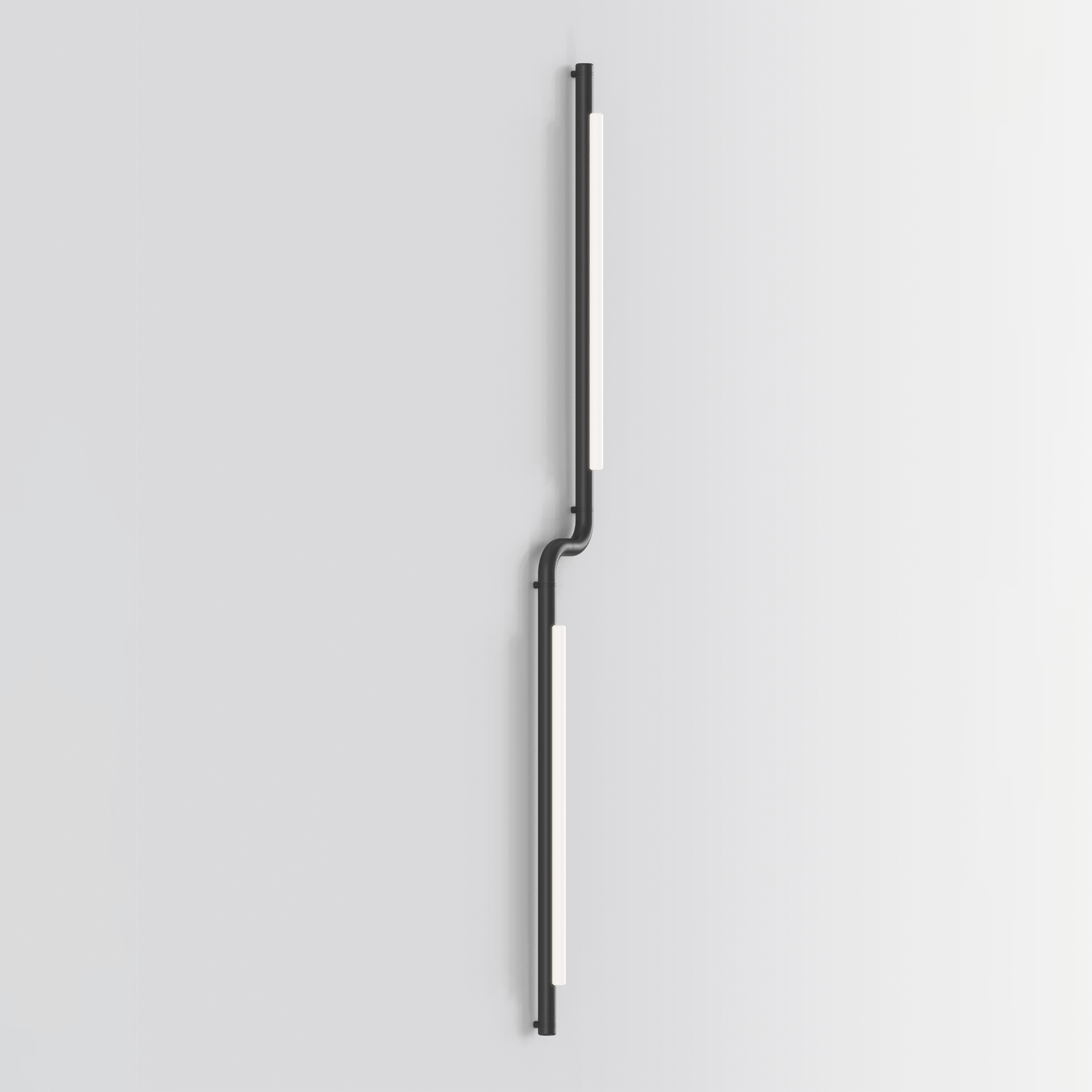

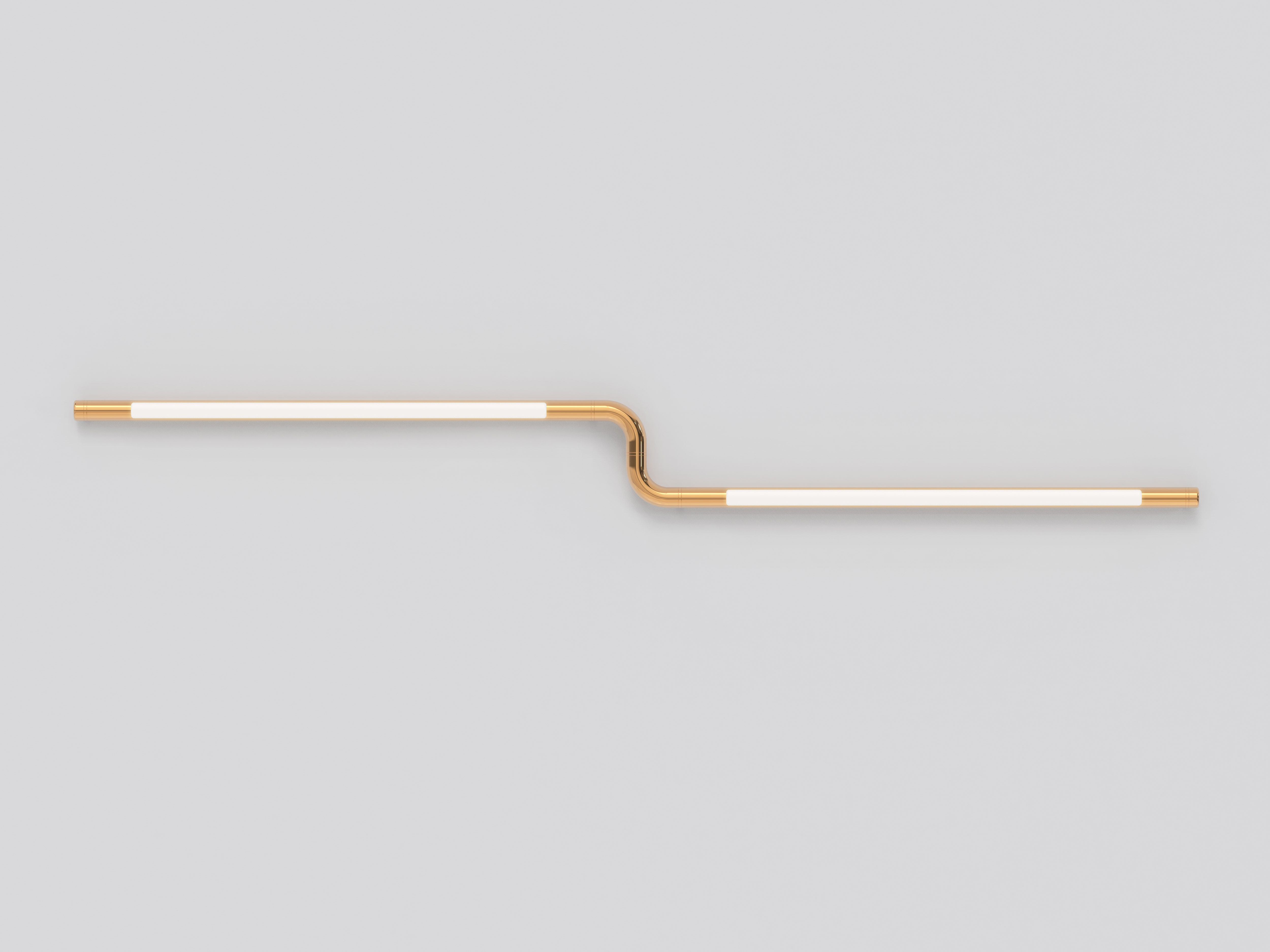

PIPELINE CEILING/WALL, CM3

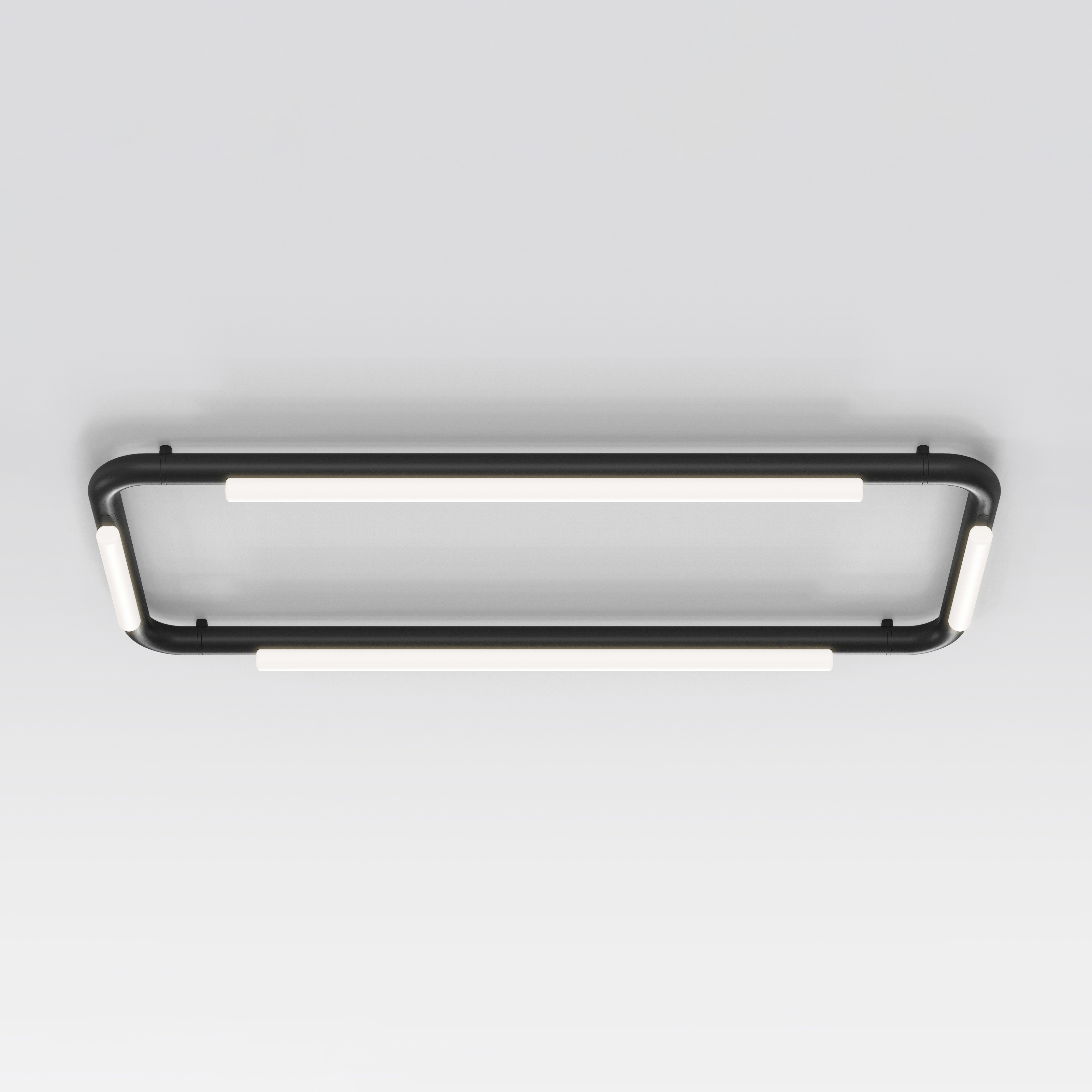

PIPELINE CEILING/WALL, CM4

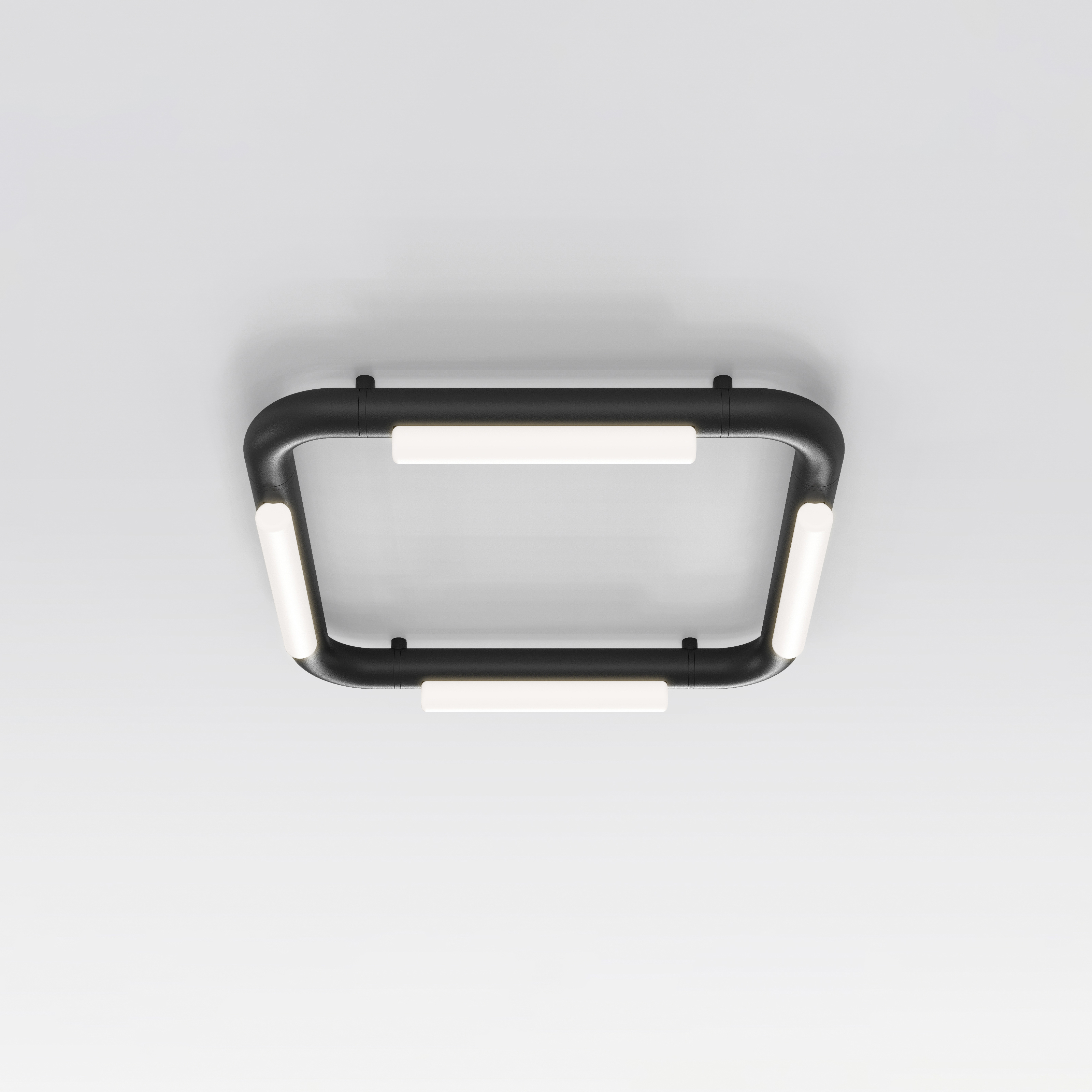

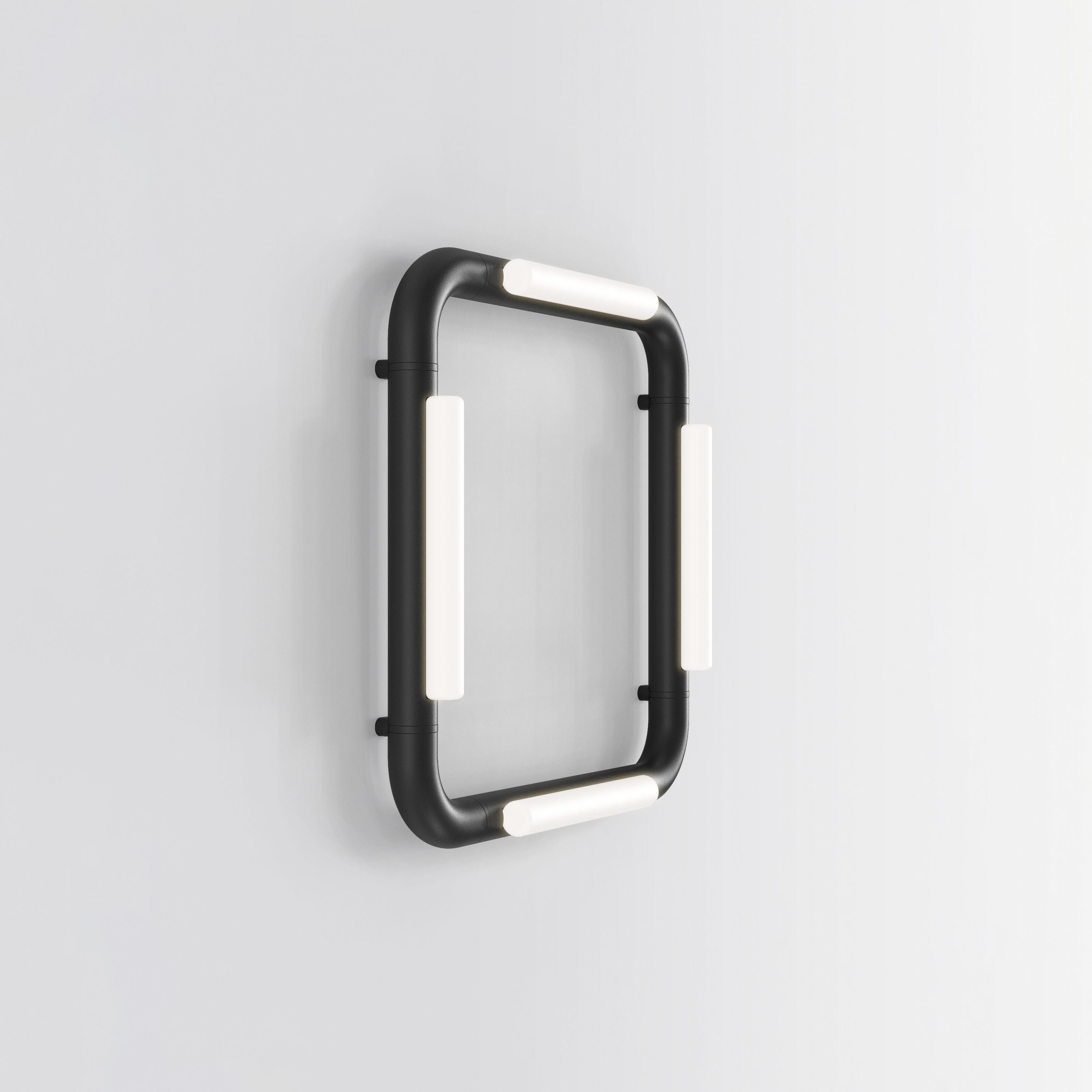

PIPELINE CEILING/WALL, CM5

PIPELINE CEILING/WALL, CM6

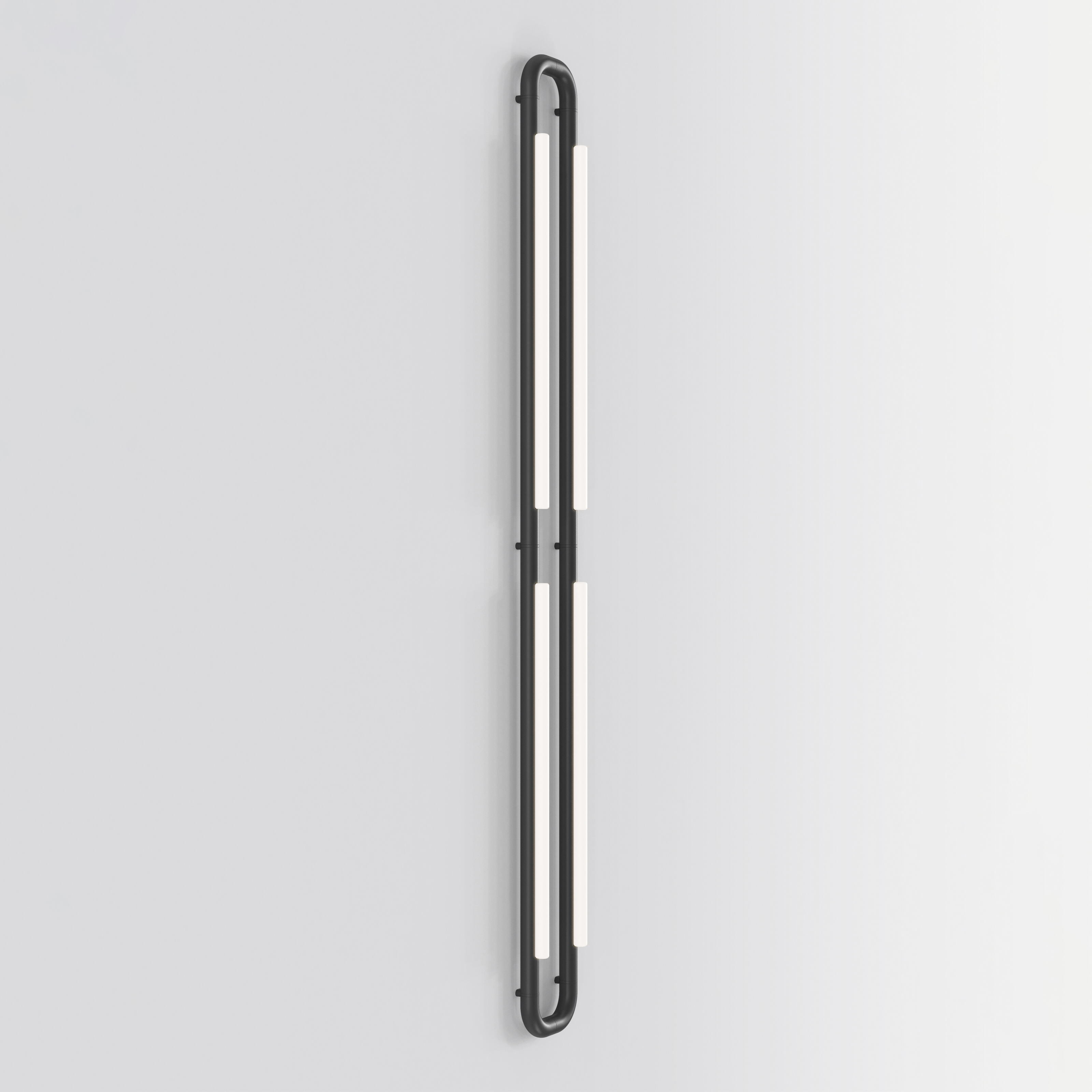

PIPELINE CEILING/WALL, CM7

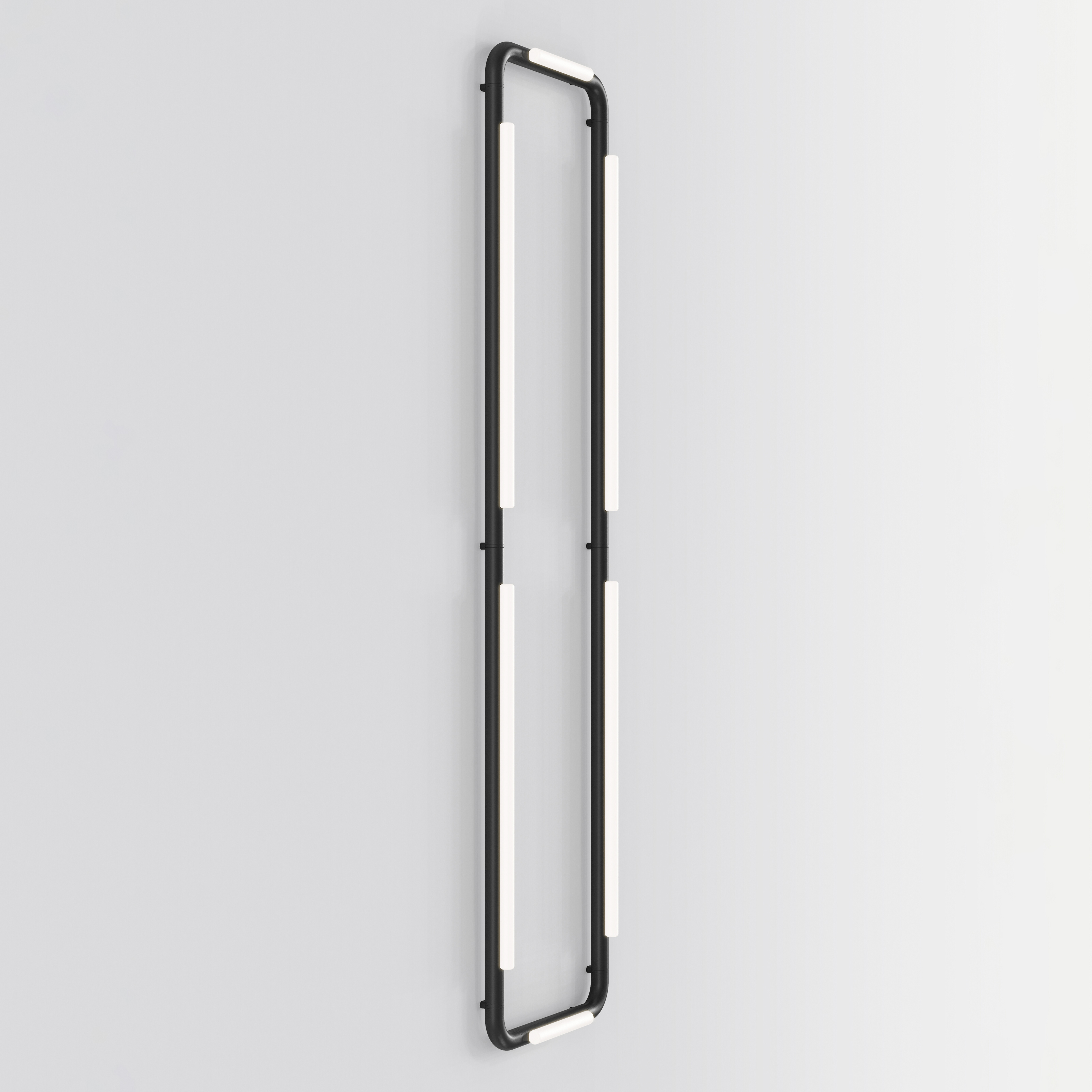

PIPELINE CEILING/WALL, CM8














DIMENSIONS

CEILING/WALL 125.2:
246 x 9 x 5cm / 97” x 3.5“ x 2”
CEILING/WALL 125.3:
366 x 9 x 5cm / 144” x 3.5“ x 2”
CEILING/WALL 125.4:
487 x 9 x 5cm / 192” x 3.5“ x 2”
CEILING/WALL 125.5:
607 x 9 x 5cm / 239” x 3.5“ x 2”

CEILING/WALL CM1:
100 x 26 x 9cm / 39” x 10“ x 3.5”
CEILING/WALL CM2:
186 x 26 x 9cm / 73” x 10“ x 3.5”

CEILING/WALL CM3:
272 x 26 x 9cm / 107” x 10” x 3.5“

CEILING/WALL CM4:
146 x 63 x 9cm / 57” x 25“ x 3.5”

CEILING/WALL CM5:
63 x 63 x 9cm / 25” x 25“ x 3.5”

CEILING/WALL CM6:
146 x 26 x 9cm / 57” x 10“ x 3.5”

CEILING/WALL CM7:
267 x 26 x 9cm / 105” x 10“ x 3.5”

CEILING/WALL CM8:
267 x 63 x 9cm / 105” x 25“ x 3.5”


MATERIALS
Aluminum Body

Cast Acrylic

MANUFACTURED
Canada

ELECTRICAL

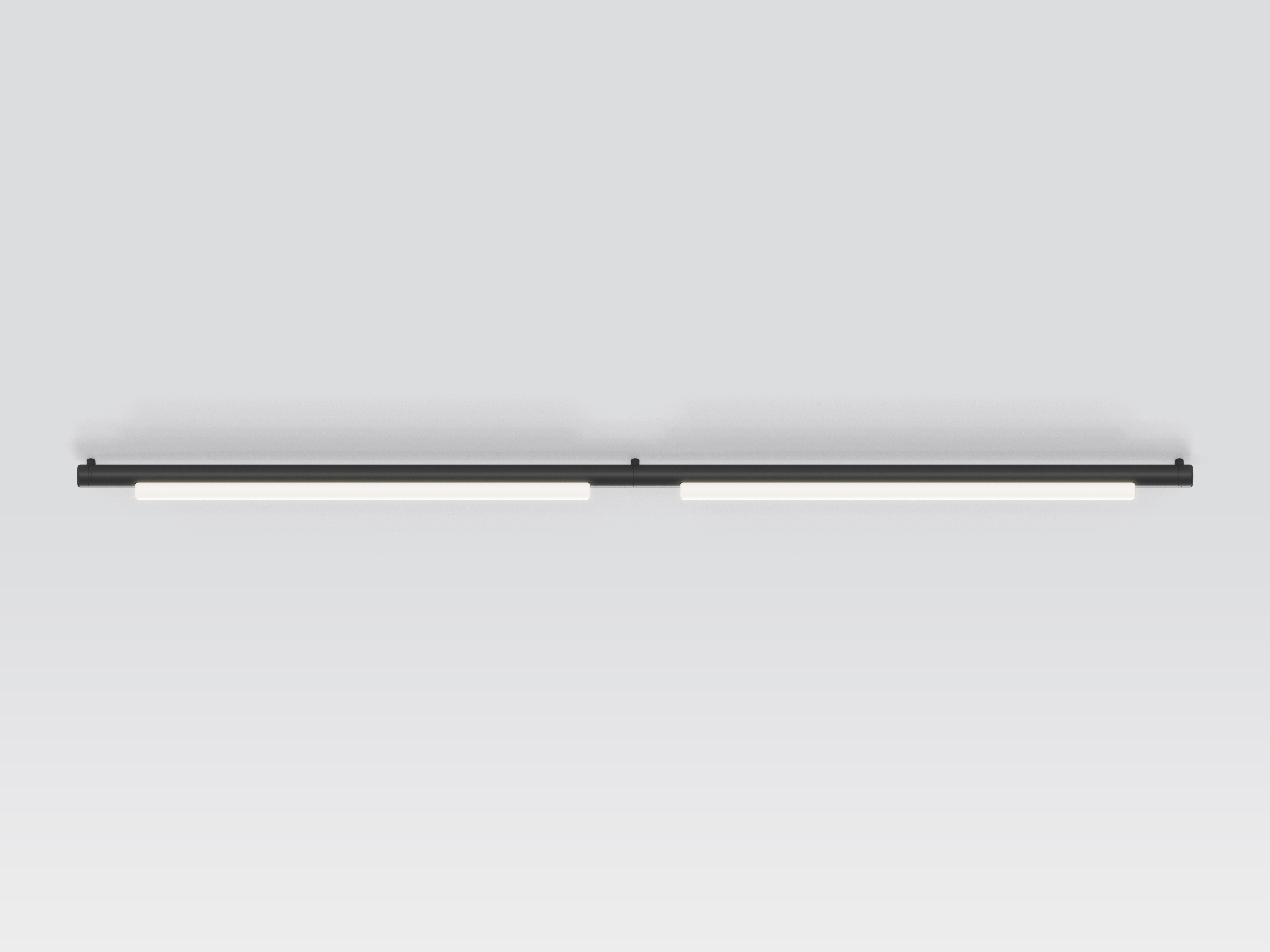

CEILING/WALL 125.2: 34W LED
CEILING/WALL 125.3: 51W LED

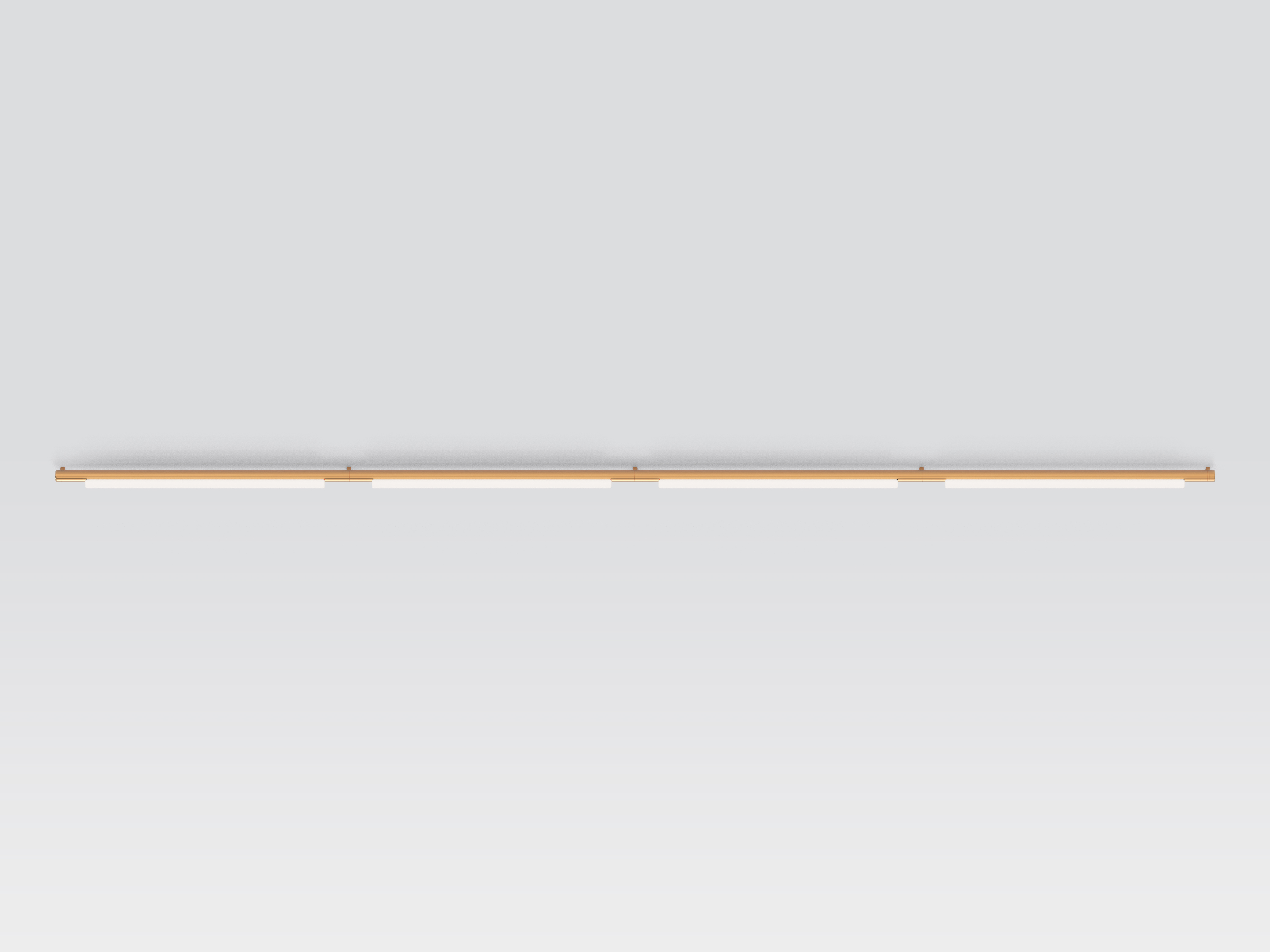

CEILING/WALL 125.4: 68W LED
CEILING/WALL 125.5: 85W LED


CEILING/WALL CM1: 10W LED
CEILING/WALL CM2: 22W LED

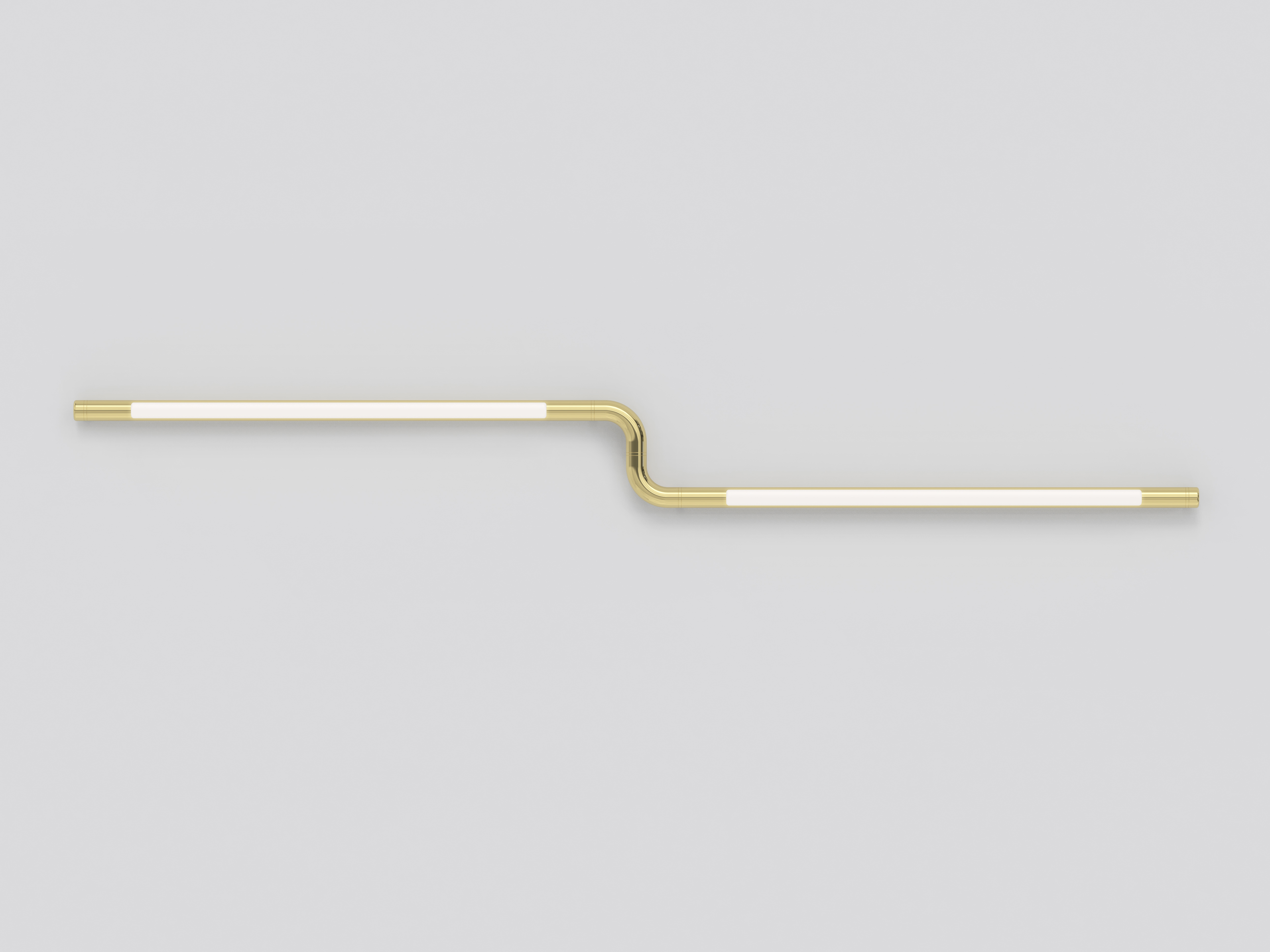

CEILING/WALL CM3: 34W LED

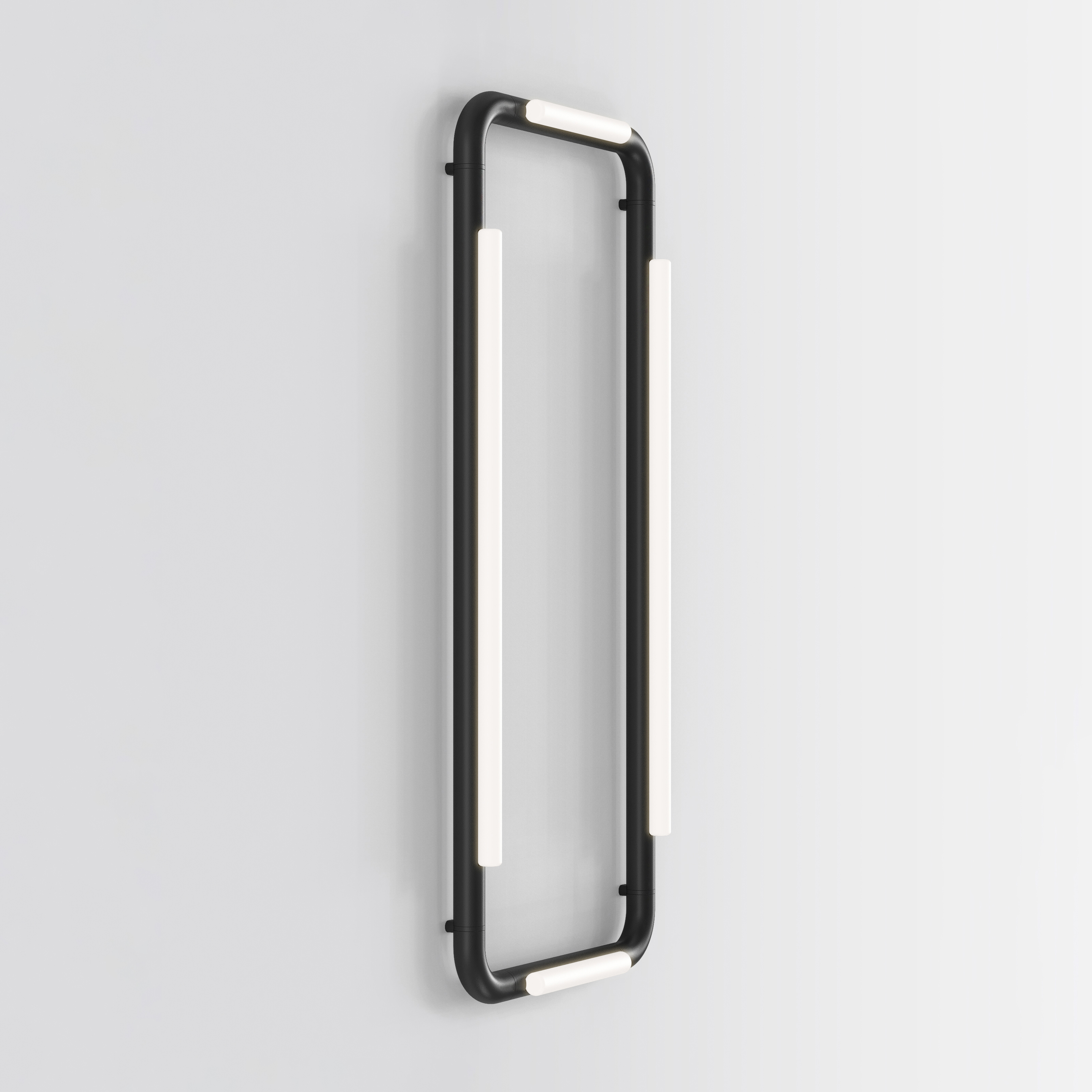

CEILING/WALL CM4: 44W LED
CEILING/WALL CM5: 20W LED
CEILING/WALL CM6: 34W LED
CEILING/WALL CM7: 68W LED
CEILING/WALL CM8: 78W LED



47,000 hour Lifetime
90+ CRI
Input Voltage:
110–120V / 220–240V / 110–277V
Integral 24V DC power supply included
Controls: Phase dimming / 0–10 / DALI


COLOUR TEMPERATURE





CERTIFICATIONS


FINISHES


BLACK (BK)




WHITE (WH)



CUSTOM

We are happy to support and collaborate further customization of our luminaires for larger scale projects.

For further enquiries, please get in touch with us at info@andlight.ca






COPPER (CP)



BRASS (BR)



CHROME (CH)





PIPELINE
CM1, CEILING/WALL, BRASS

PIPELINE

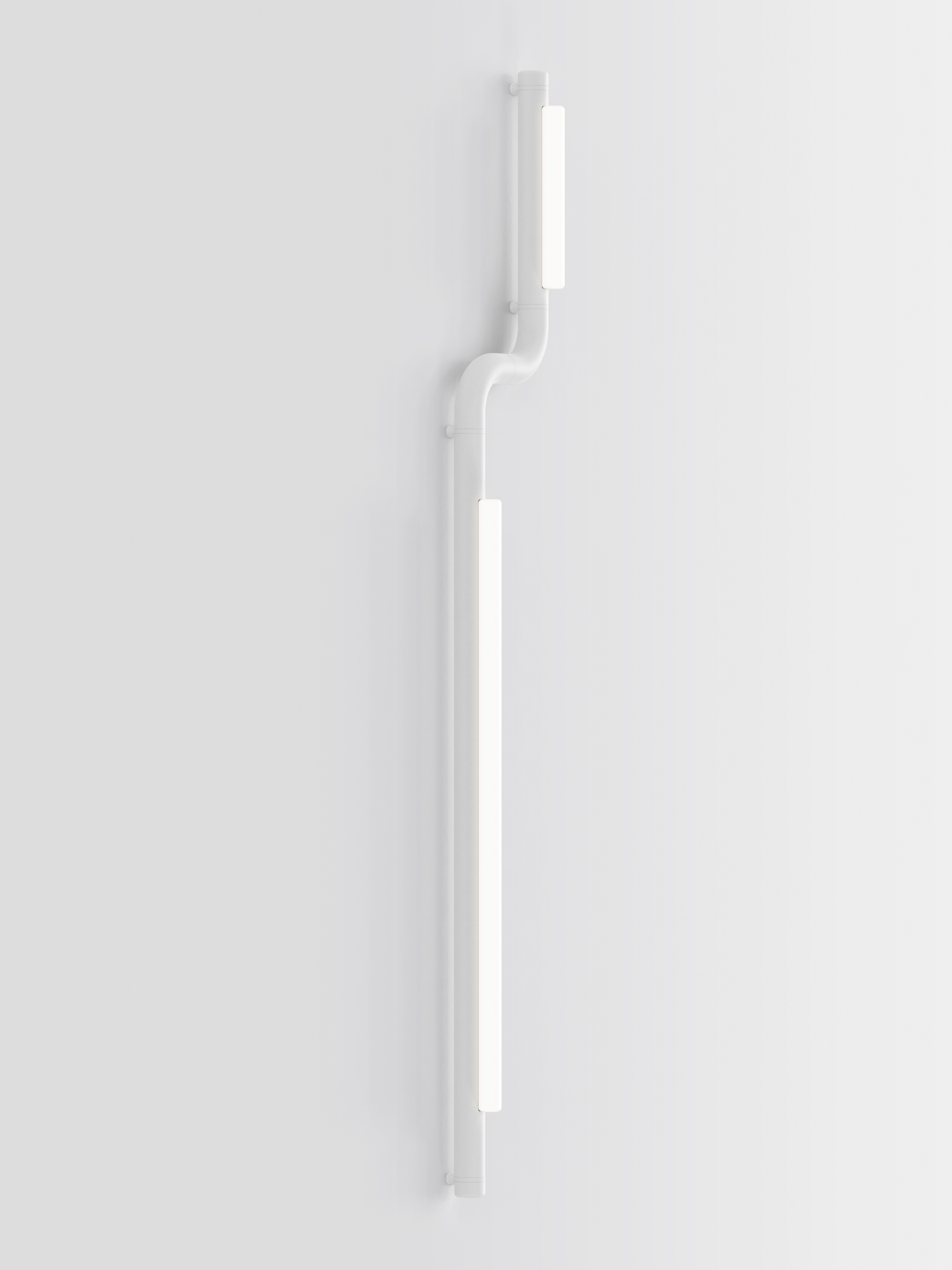

CM2, CEILING/WALL, WHITE


PIPELINE

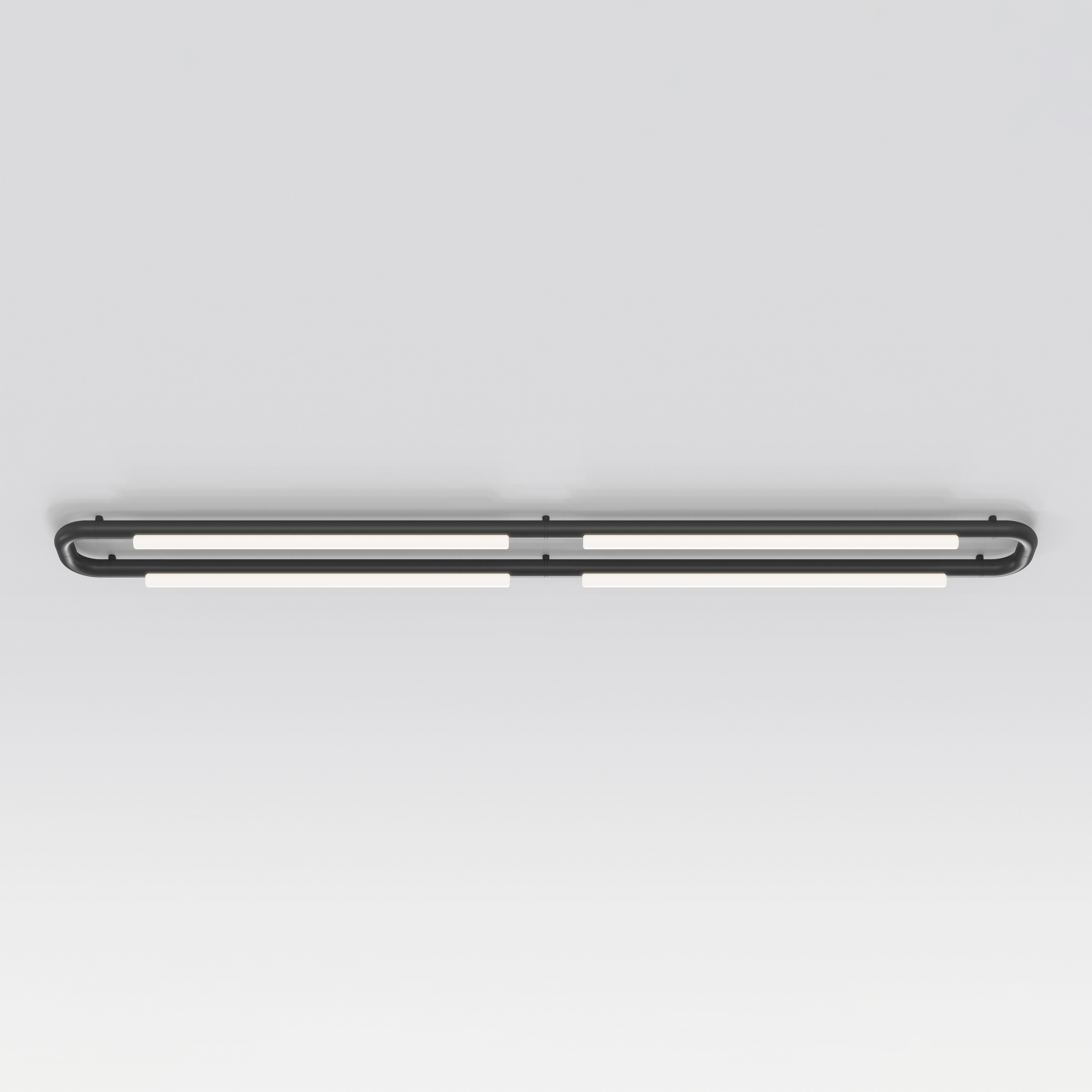

CM7, CEILING/WALL, COPPER






SEE THE PIPELINE IN USE ︎ PROJECTS





______

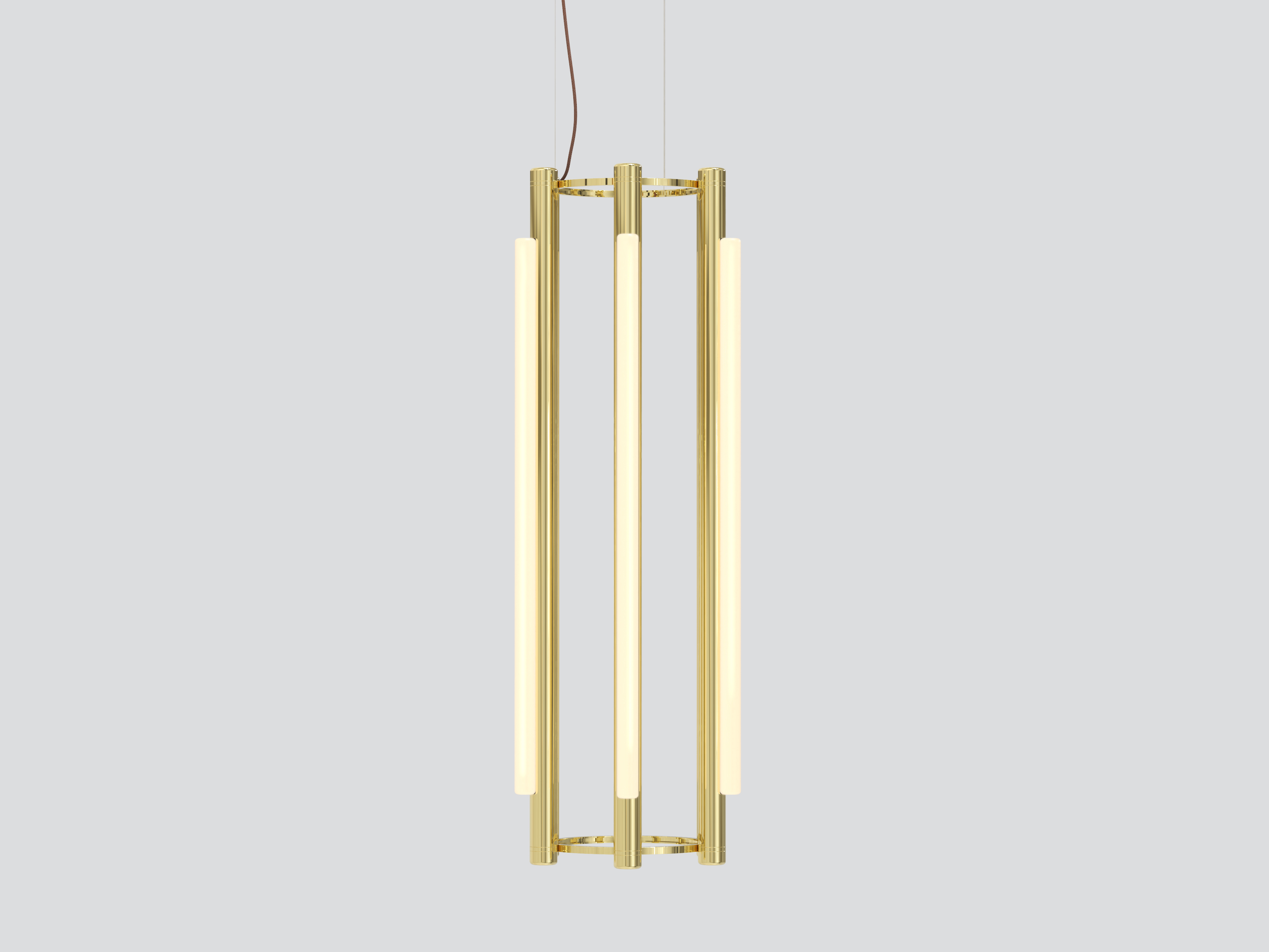

PIPELINE CHANDELIER

PENDANT


DESIGNER: CAINE HEINTZMAN, 2019

 By definition, the Pipeline Chandelier features a cylindrical arrangement of linear illuminated sections cinched by metal hoops. Its carousel-like form proposes an unconventional lighting solution; one that radiates from its concentric structure.

The Pipeline Chandelier lends a new interpretation to the original Pipeline series. At its essence, the series is characterized by a single linear section—available in two different lengths, which can then be suspended individually and sequentially to show a range of sizes and styles. The result is a luminaire that can be moulded into any environment to express any vision.

Utilizing the linear components of the original Pipeline series, the barrel introduces a new connector: conjoining all components together, the metal hoop comes in three diameters; it thus offers a fixture adaptable to residential, hospitality and larger-scale commercial projects.


QUICK LINKS ︎


︎ INSTRUCTIONS — North America
︎ INSTRUCTIONS — World Market

︎ WORKBOOK

︎ IMAGE REQUEST

︎ PRODUCT BOOKLET

︎ 3D/REVIT/IES FILE REQUEST

︎ PURCHASE INQUIRY



CUT SHEETS ︎︎︎






















3 DIAMETERS, 2 LENGTHS

Utilizing the linear components of the original Pipeline series, available in two different lengths; the Chandelier introduces a new connector: conjoining all components together, the metal hoop comes in three diameters.




ONE-TIER – 1 – WHITE

ONE-TIER – 2 – BRASS
ONE-TIER – 3 – BLACK



ONE-TIER – 4 – BRASS

ONE-TIER – 5 – COPPER

ONE-TIER – 6 – WHITE





DIMENSIONS
Model Specific

MATERIALS
Aluminum Body

Cast Acrylic

MANUFACTURED
Canada

ELECTRICAL
Model Specific
47,000 hour Lifetime
90+ CRI
Input Voltage 100–240V + 227V
Integral 24V DC power supply included
Dimming Options: MLV, 0–10, Dali


COLOUR TEMPERATURE





CERTIFICATIONS


FINISHES


BLACK (BK)




WHITE (WH)



CUSTOM

We are happy to support and collaborate further customization of our luminaires for larger scale projects.

For further enquiries, please get in touch with us at info@andlight.ca






COPPER (CP)



BRASS (BR)



CHROME (CH)

CANOPY

6” Ø / 15cm x 5cm / 6” x 2”

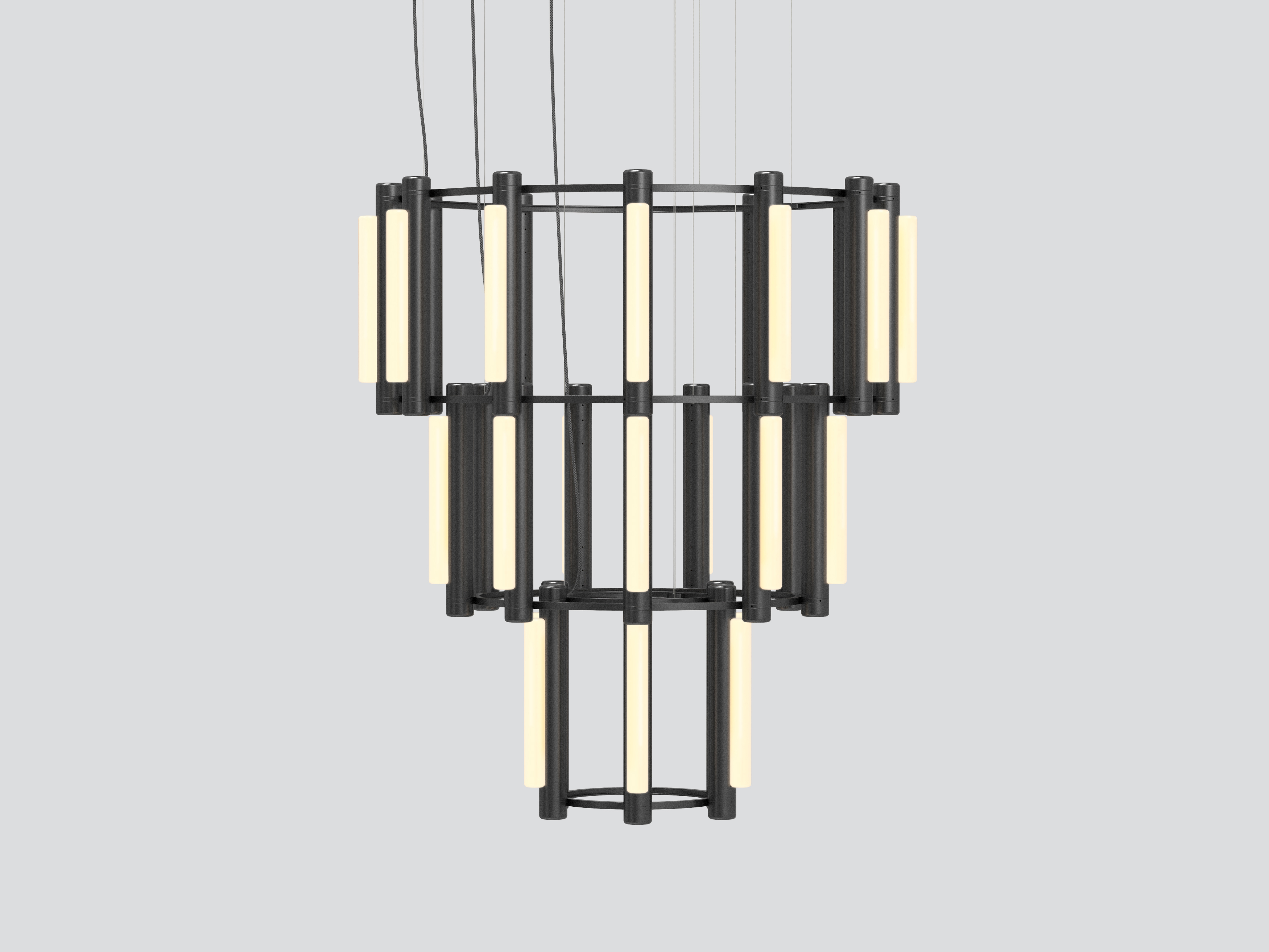

PIPELINE CHANDELIER 10, THREE-TIER, BRASS

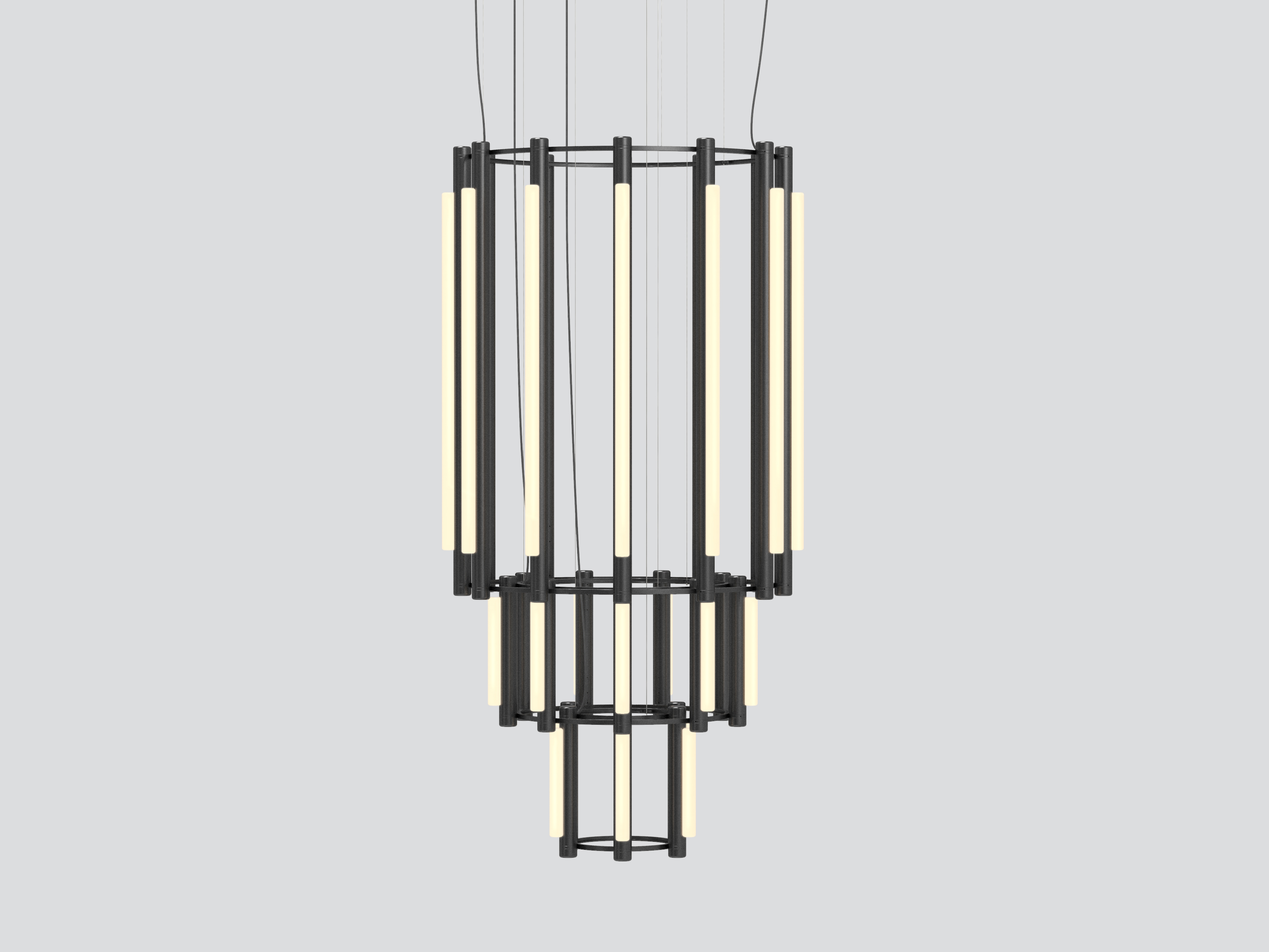

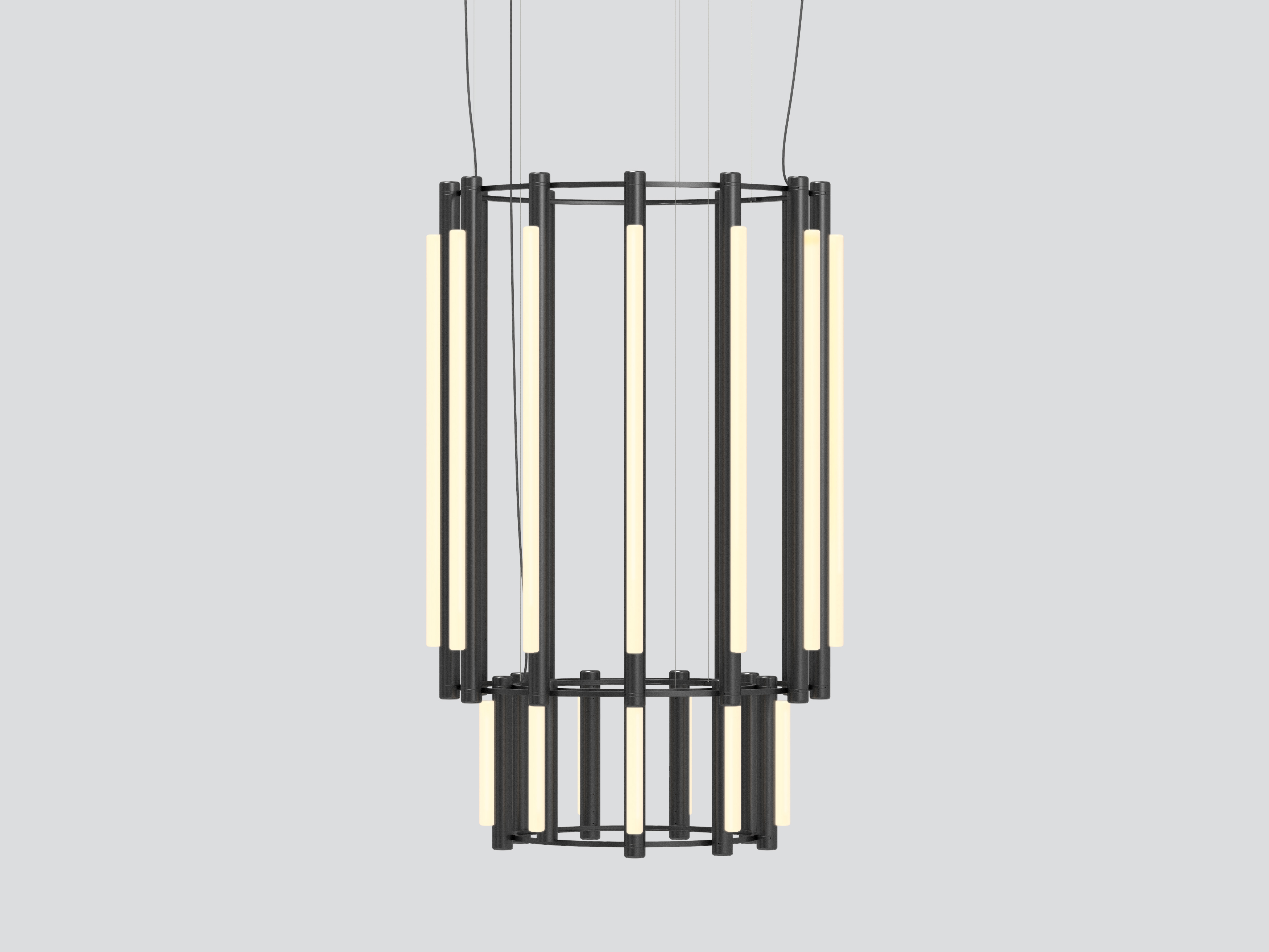

PIPELINE CHANDELIER 9, TWO-TIER, BLACK

PIPELINE CHANDELIER BLACK





SEE THE PIPELINE IN USE ︎ PROJECTS







SINGLE-TO MULTI-TIER


TWO-TIER


THREE-TIER


Available models include a single-tier, two-tier and three-tier option; and suspends vertically or horizontally; thus offering a fixture that suits residential to larger scale commercial projects.

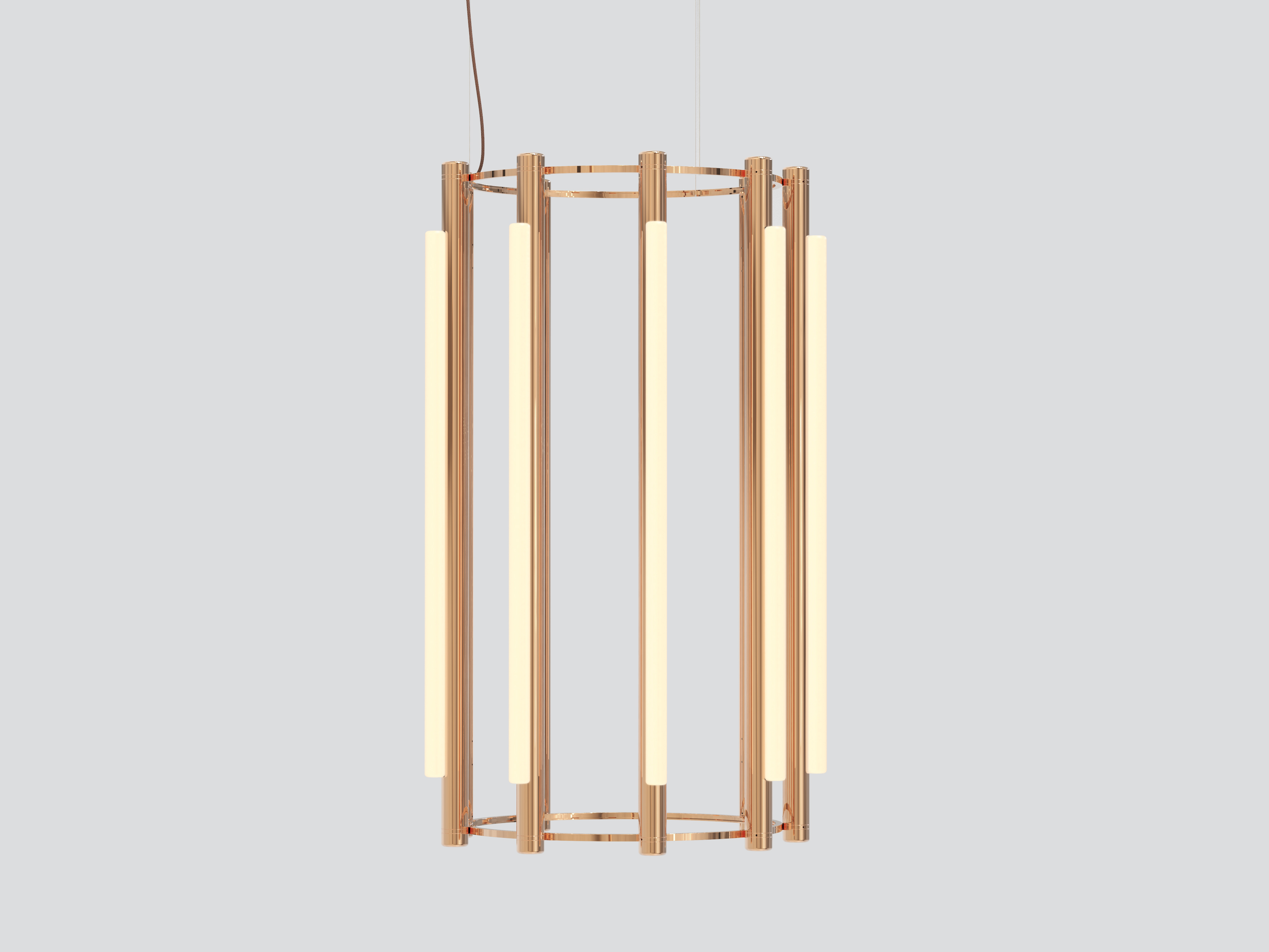

HORIZONTAL OR VERTICAL










______

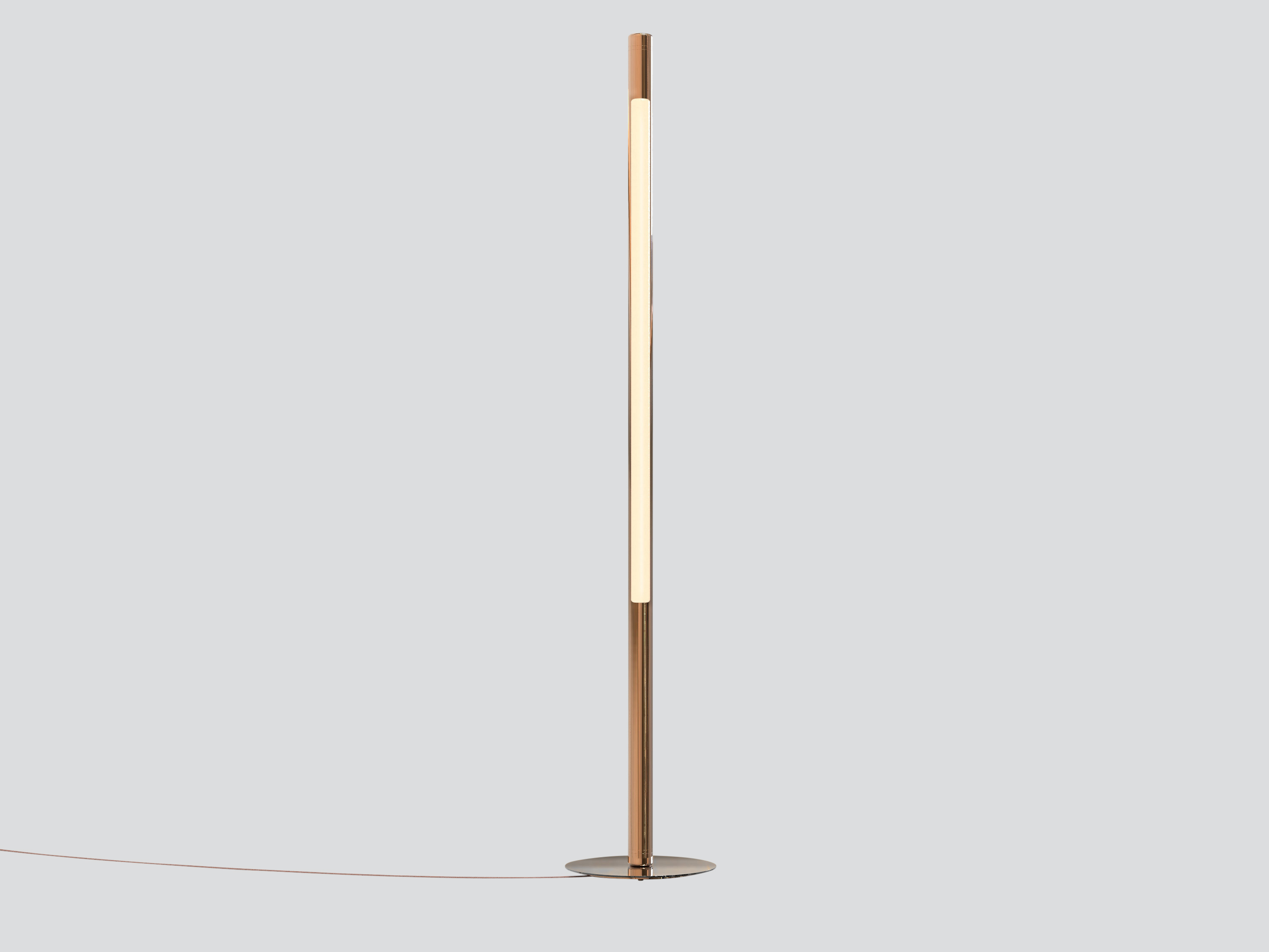

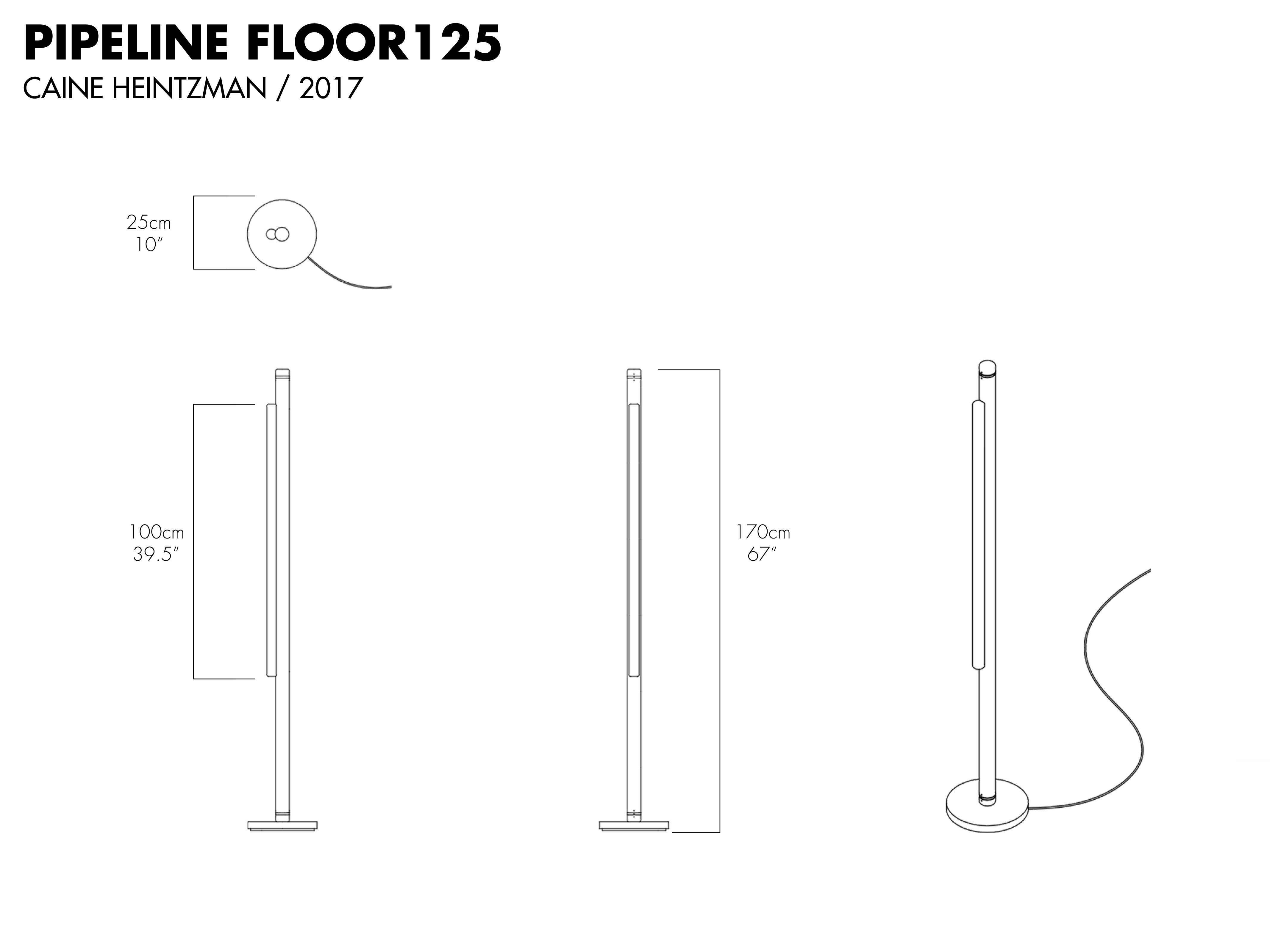

PIPELINE SERIES

TABLE/FLOOR

DESIGNER: CAINE HEINTZMAN, 2017


Stark, elegant, and resolute, the Pipeline 40 table lamp and Pipeline 125 floor lamp stand upright, balancing on a chrome mirror weighted base reflecting its stance and creating the illusion of floating.



CUT SHEETS︎︎︎

TABLE | FLOOR

QUICK LINKS ︎

︎ INSTRUCTIONS

︎ WORKBOOK

︎ IMAGE REQUEST

︎ 3D/REVIT/IES FILE REQUEST

︎ PURCHASE INQUIRY
















DIMENSIONS

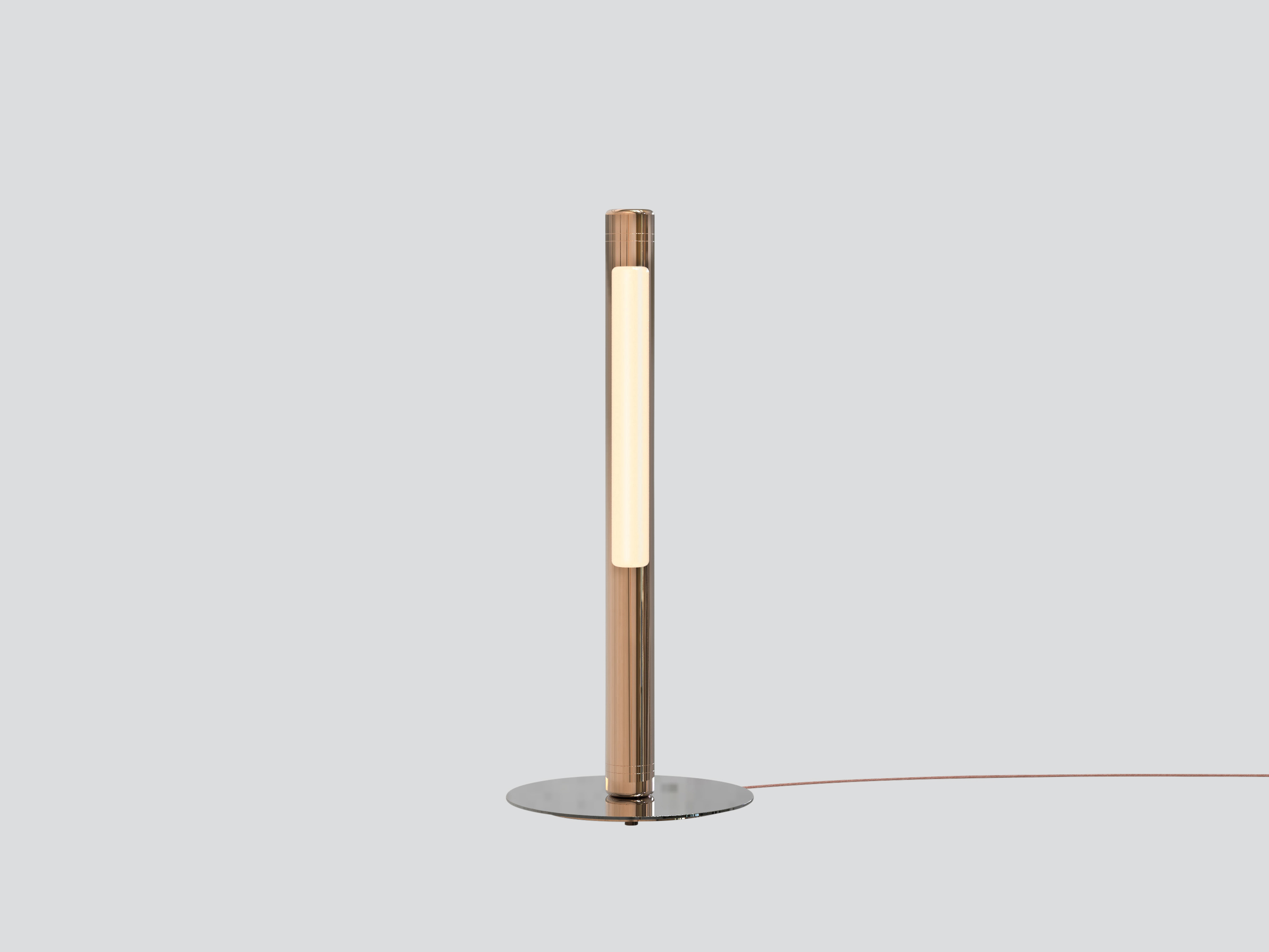

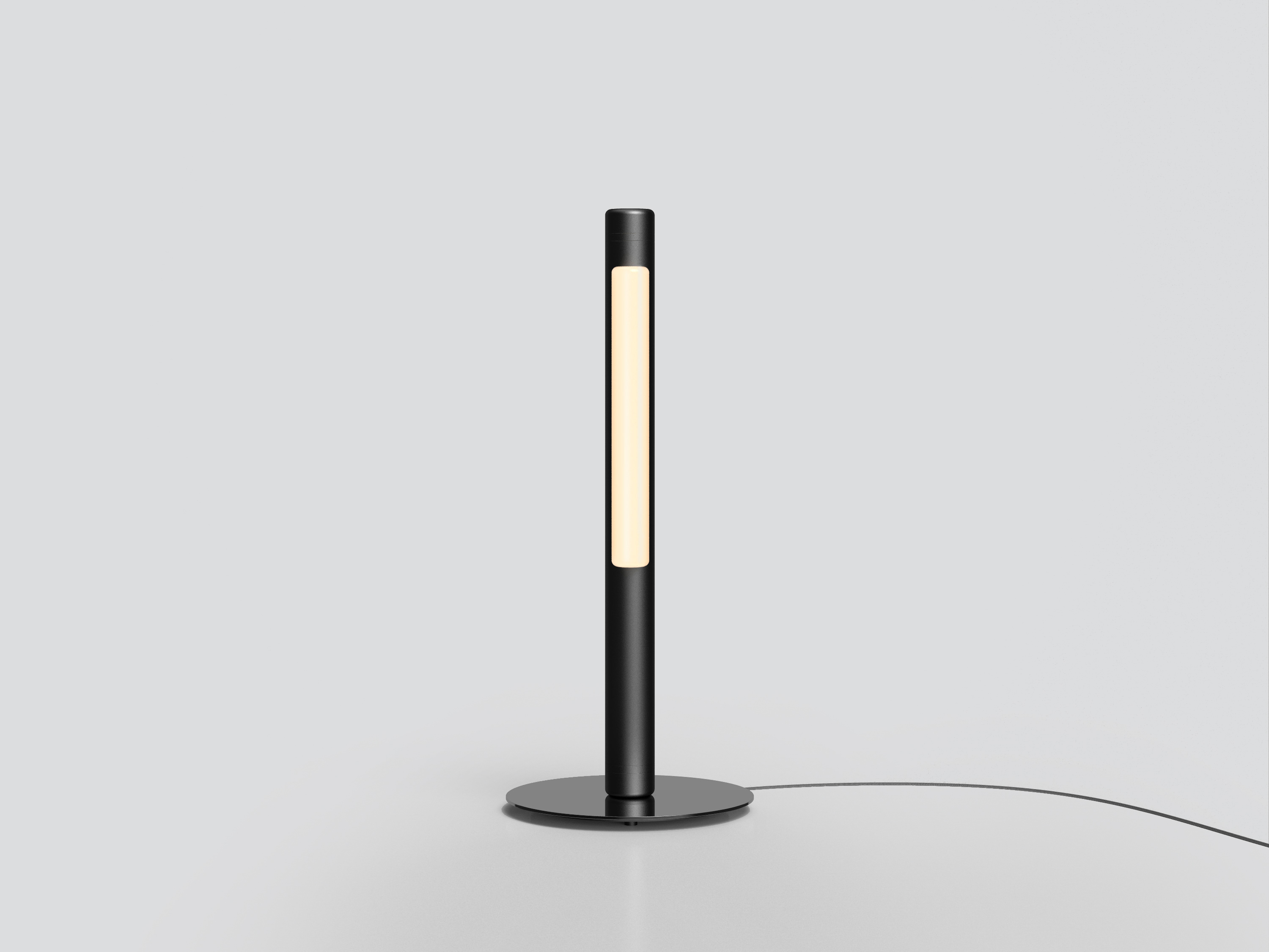

TABLE 40: 62 x 20 cm / 24.5” x 8“

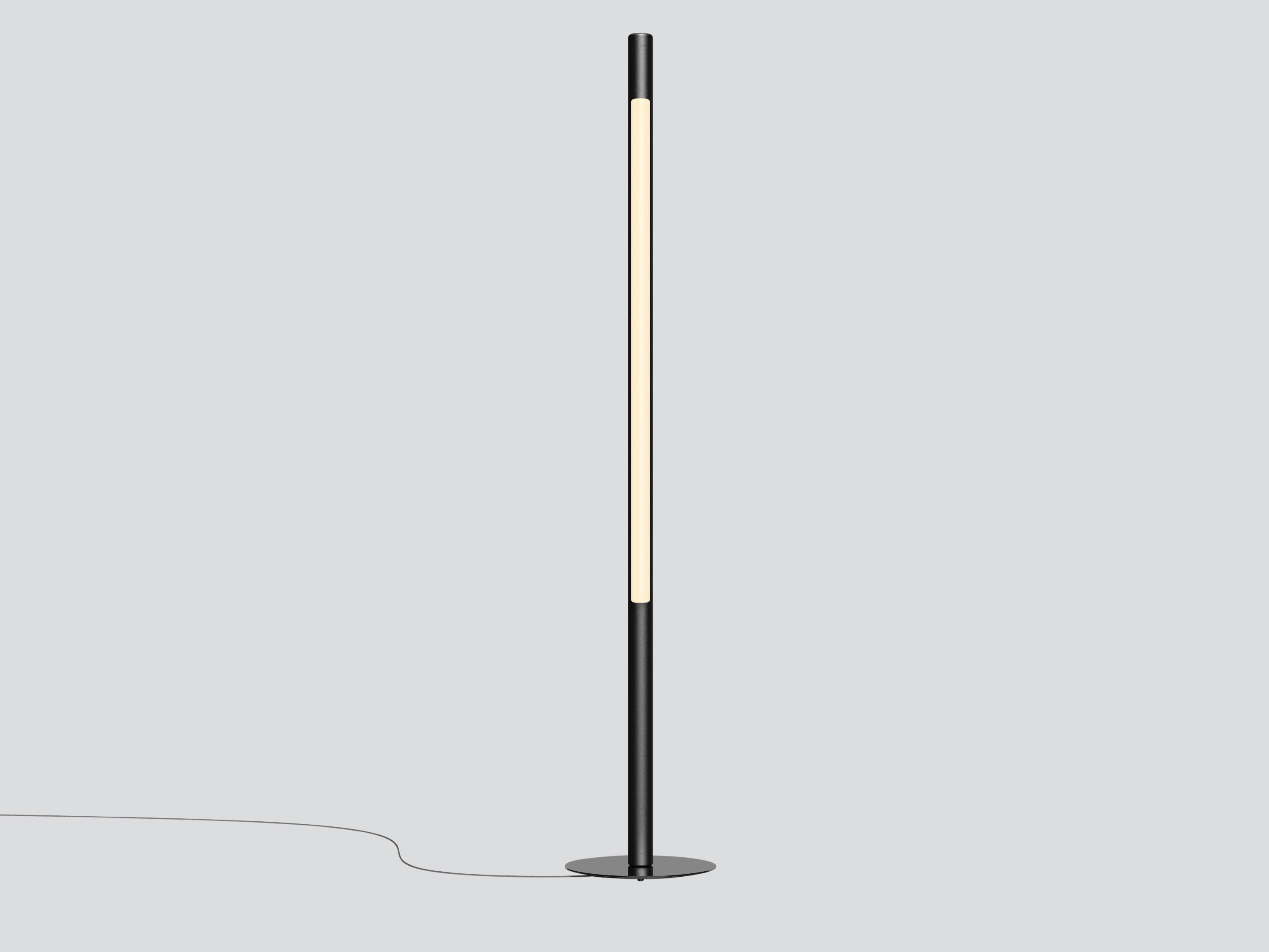

FLOOR 125: 170 x 25cm/ 67” x 10”


MATERIALS
Aluminum Body

Cast Acrylic
Polished Stainless Steel Base


MANUFACTURED
Canada

ELECTRICAL
TABLE 40: 5W LED
FLOOR 125: 15W LED

47,000 hour Lifetime
90+ CRI
Input Voltage 100–240V
Hand/Floor Foot Dimmer Switch Included


COLOUR TEMPERATURE


CERTIFICATIONS


FINISHES


BLACK (BK)




WHITE (WH)



CUSTOM

We are happy to support and collaborate further customization of our luminaires for larger scale projects.

For further enquiries, please get in touch with us at info@andlight.ca






COPPER (CP)



BRASS (BR)



CHROME (CH)





PIPELINE
TABLE, BLACK

PIPELINE
TABLE, BRASS


PIPELINE
FLOOR, BLACK






SEE THE PIPELINE IN USE ︎ PROJECTS
