PIPELINE LINEAR

PENDANT

DESIGNER: CAINE HEINTZMAN, 2013

Stark, elegant, and resolute, the Pipeline Linear pendant lamp suspends horizontally from 1mm thin aircraft cables, creating the illusion of floating in air. The  fixture uniformly emits a wide horizontal beam of light through a specially developed diffuser designed to soften LED light while maximizing output.

The Pipeline pendant may be suspended horizontally level or at angles, individually or in multiples and undoubtedly makes a favourable impression within the space it inhabits.





































PIPELINE 125.2, PENDANT, COPPER

PIPELINE 125.3, PENDANT, BLACK

PIPELINE 125.3, PENDANT, WHITE

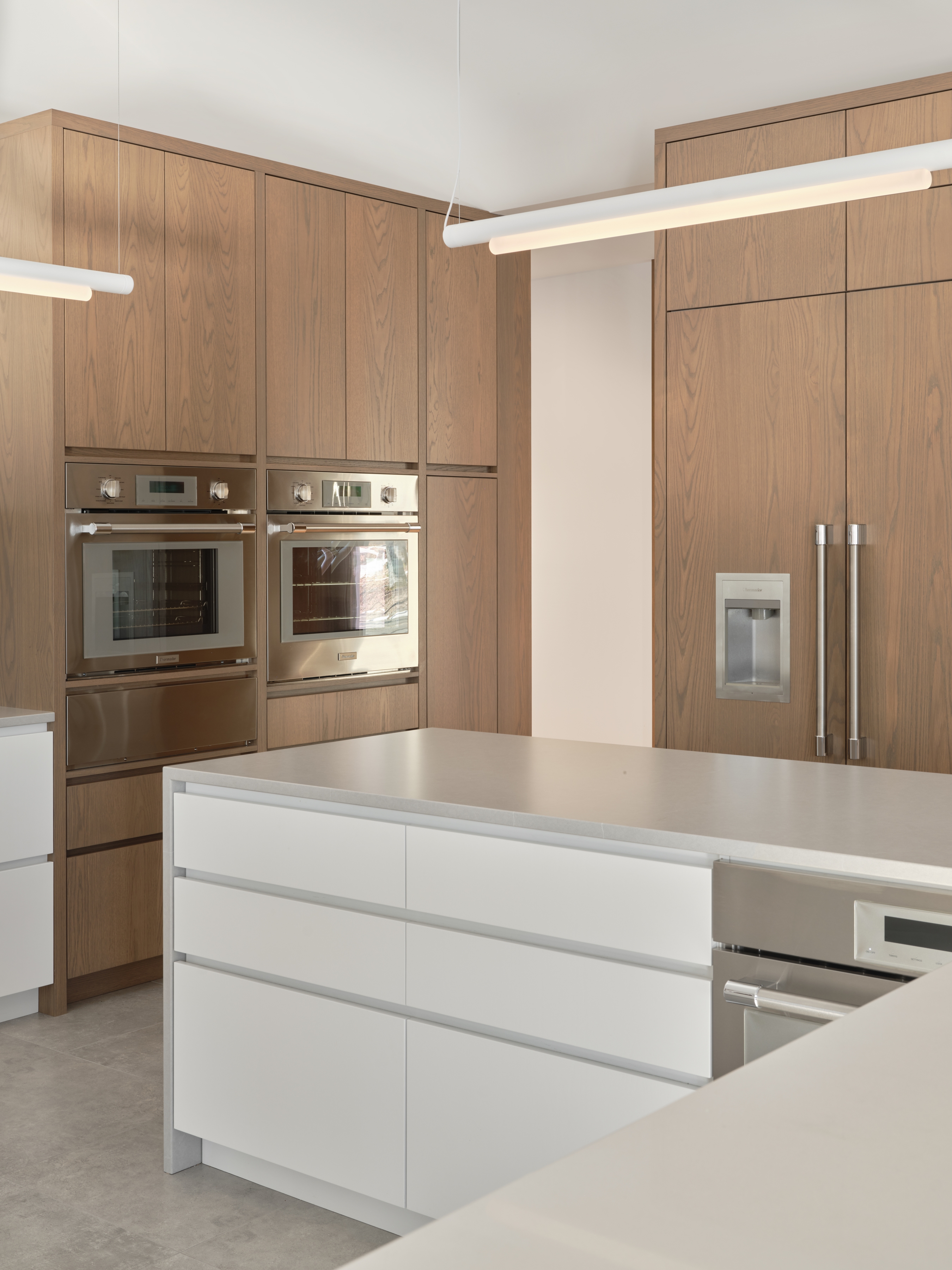

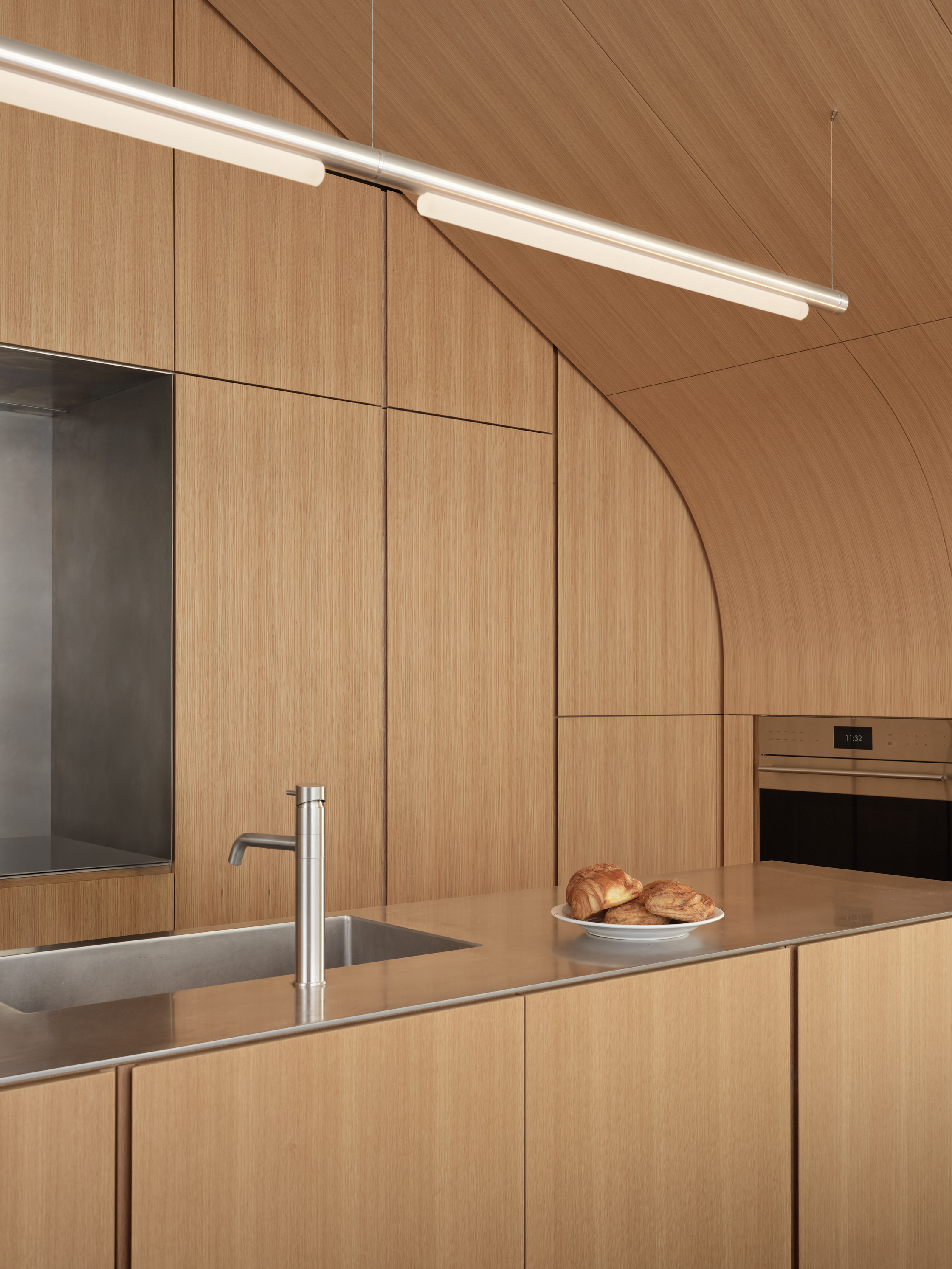

SEE THE PIPELINE IN USE ︎ PROJECTS



______

SPECIFICATIONS




DIMENSIONS
l x w x h
125.2:
246 x 7.5 x 5cm
97” x 3.25” x 2”

125.3:
366.2 x 7.5 x 5cm
144.2” x 3.25” x 2”
125.4:
486.5 x 7.5 x 5cm
191.5” x 3” x 2”

125.5:
606.6 x 7.5 x 5cm
238.8” x 3” x 2”

ELECTRICAL
Input Voltage:
110–120V, 220–240V, 110–277V

Lamping:
24V DC LED
CRI 90+ / 50,000 hours
Power Supply:
Phase dimming, 0-10V, DALI

Lumens:
Model Specific




COLOUR TEMPERATURE



CANOPY
15 x 5cm /  6” x 2”
Adjustable drop length:
244cm / 96”



FINISHES
BLACK (BK) WHITE (WH) RAW (RA) BRASS (BR) COPPER (CP) CHROME (CH)


CUSTOM
We are happy to support and collaborate further customization of our luminaires for larger scale projects.

For further enquiries, please get in touch with us at info@a-n-d.com



MATERIALS
Aluminum, Acrylic

MANUFACTURED
Canada

CERTIFICATIONS



______

DOWNLOADS





PIPELINE’S
DESIGN & FUNCTION


The primary function of the Pipeline fixture is to provide diffused even linear light.

The design of the body, all of the components, how it is assembled and how it is suspended serve that purpose, the result is an uncomplicated and very practical and applicable light fixture that is at home in many situations.

— Caine Heintzman
