PIPELINE CM

PENDANT

DESIGNER: CAINE HEINTZMAN, 2013

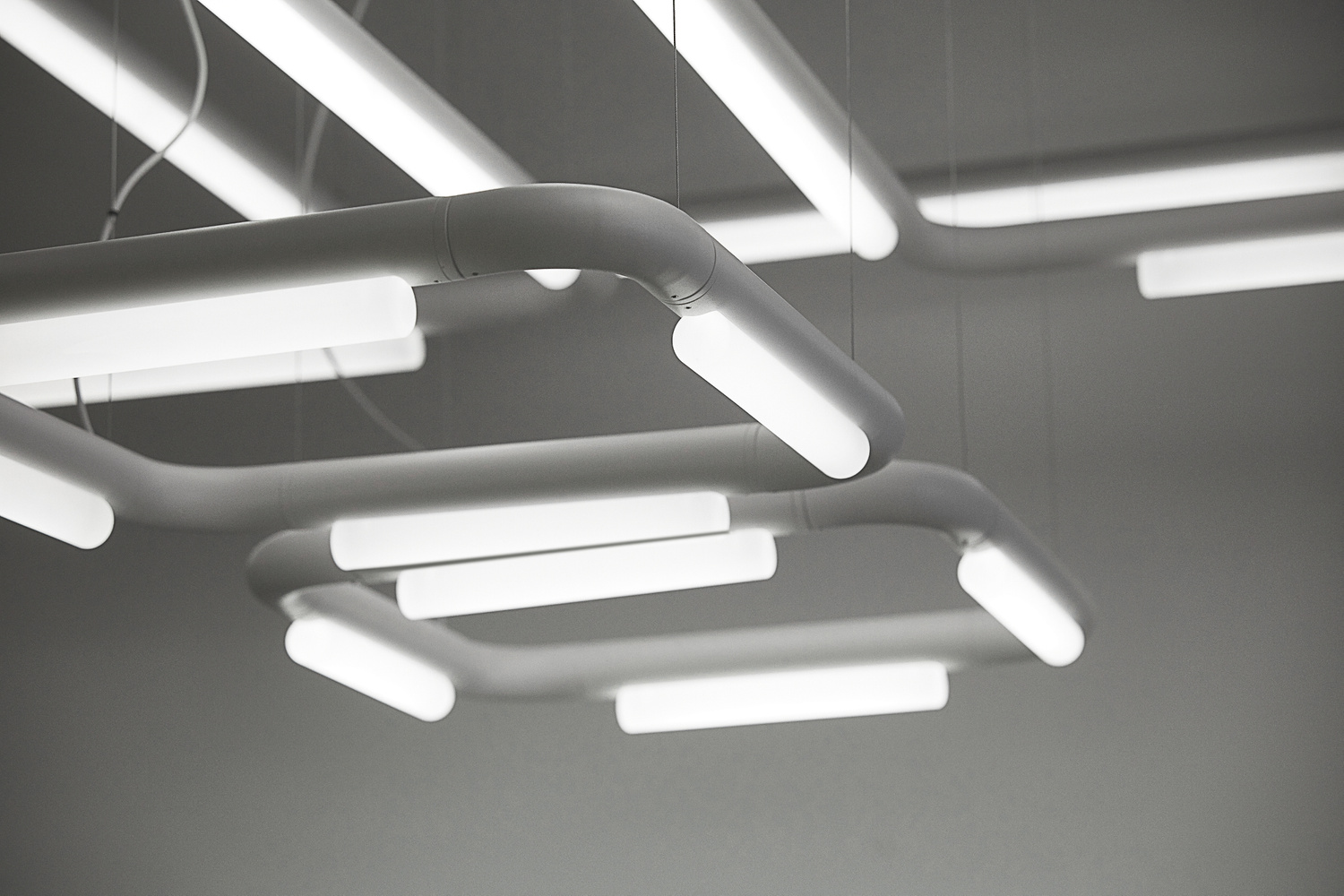

The series applies the modular capability of the Pipeline series by using a kit of parts to create unique configurations such as ‘S’ curves, loops, and larger angular arrangements for functional and decorative applications.
CM4 CM5 CM6 CM7 CM8
































PIPELINE CM7, PENDANT, BLACK/COPPER


PIPELINE CUSTOM, PENDANT, WHITE

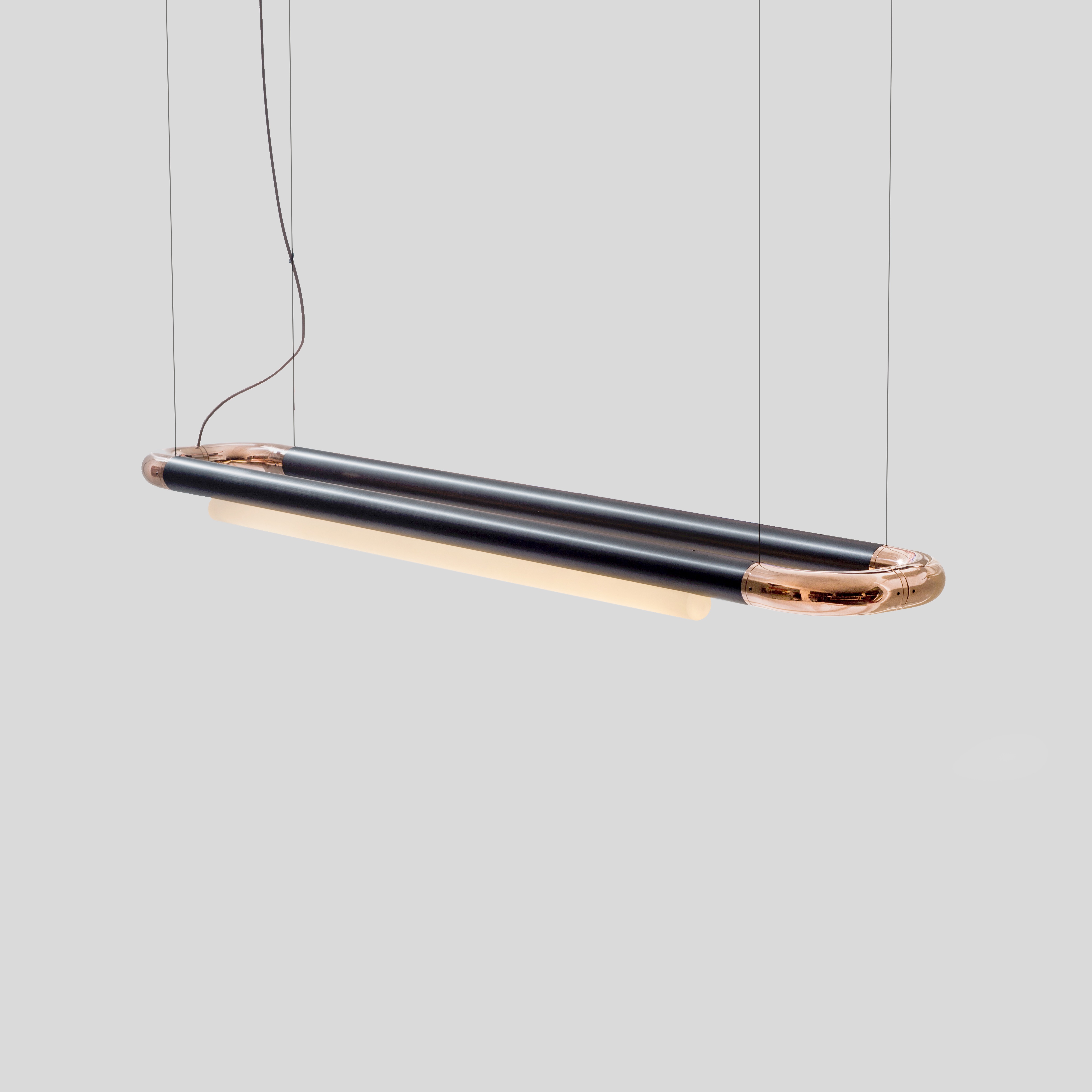

PIPELINE CM6 PENDANT, CUSTOM

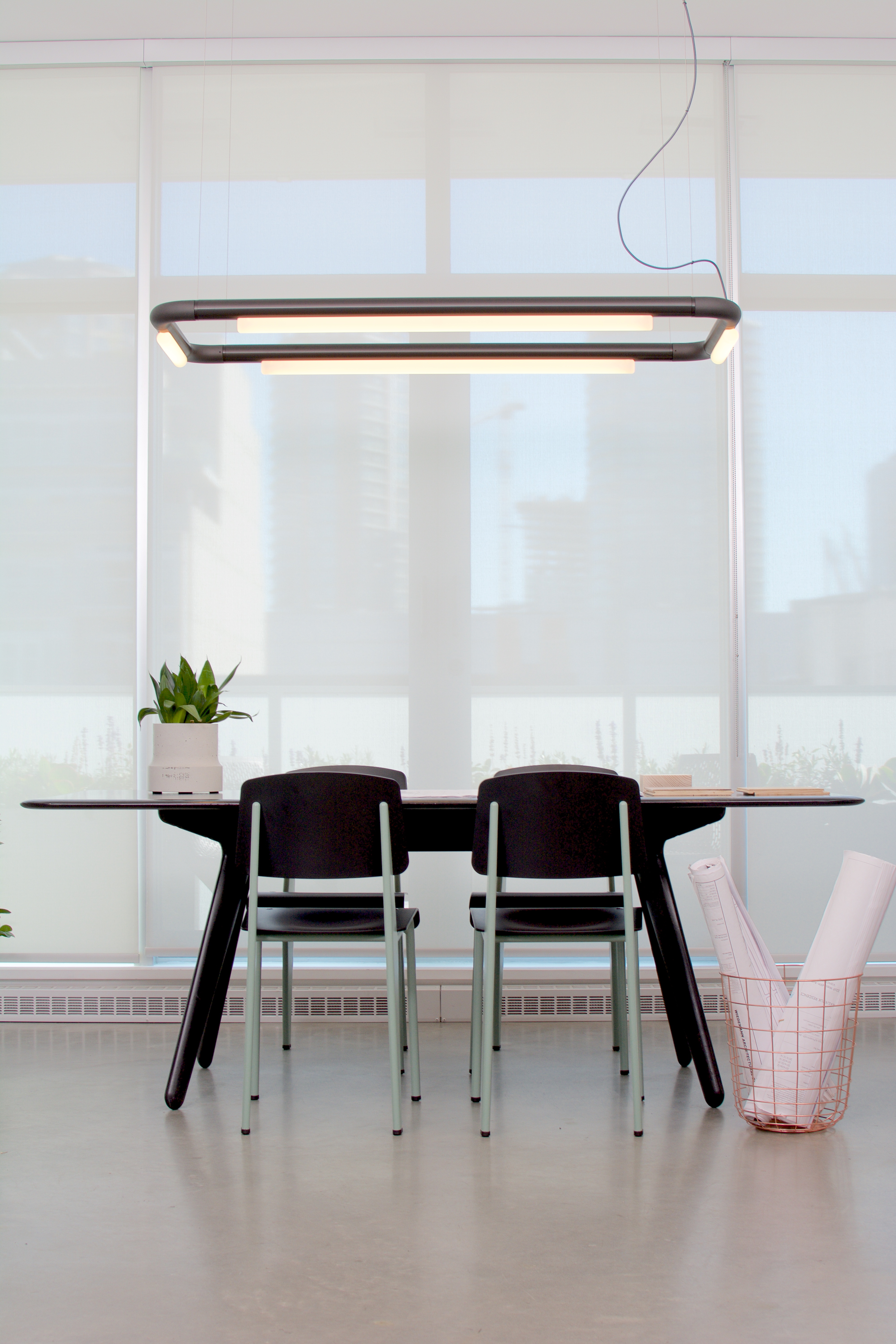

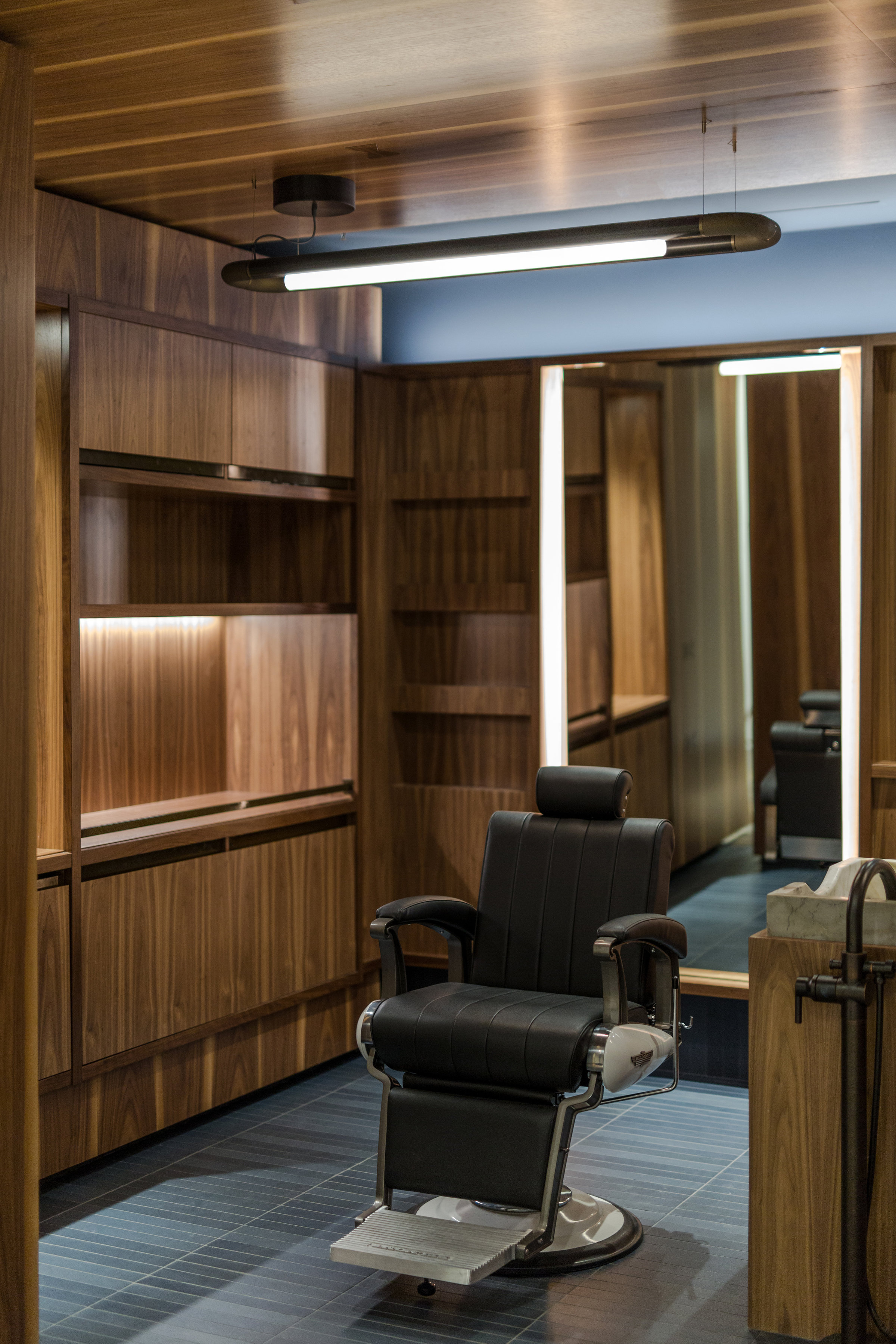

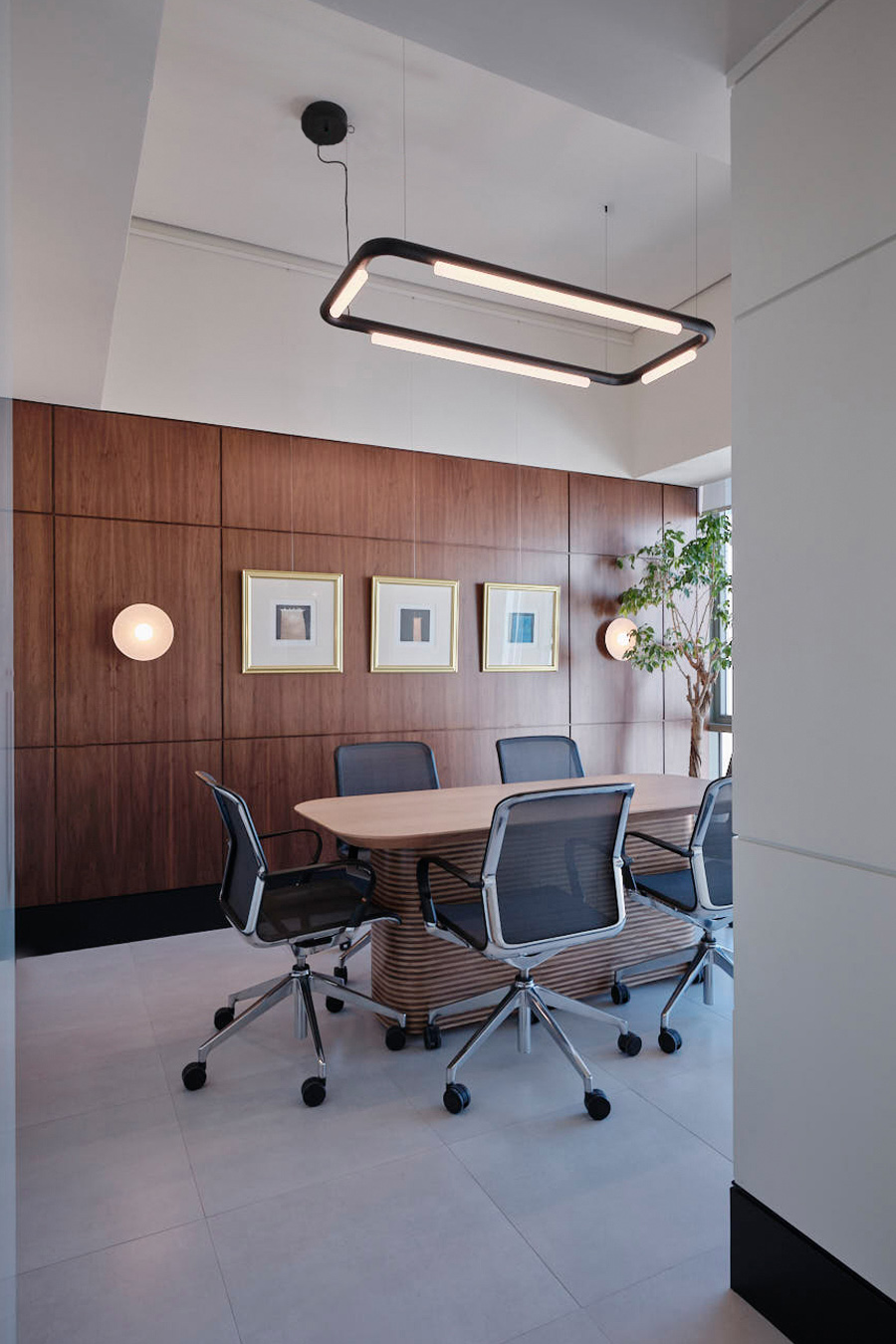

SEE THE PIPELINE IN USE ︎ PROJECTS



______

SPECIFICATIONS




DIMENSIONS
l x w x h

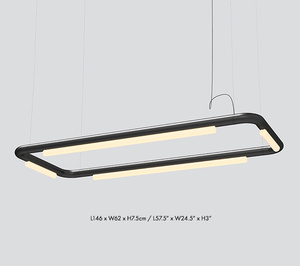

CM4:
146 x 62 x 7.5cm
57.5” x 24.5” x 3”

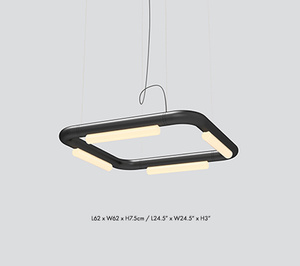

CM5:
62 x 62 x 7.5cm
24.5” x 24.5“ x 3”

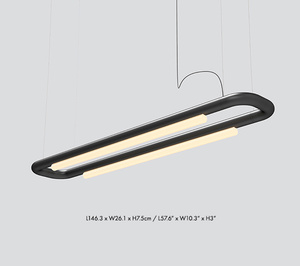

CM6:
146.3 x 26.1 x 7.5cm
57.6” x 10.3“ x 3”
CM7:
267 x 26 x 7.5cm
105” x 10.25” x 3”

CM8:
267 x 62 x 7.5cm
105” x 24.5” x 3”

ELECTRICAL
Input Voltage:
110–120V, 220–240V, 110–277V

Lamping:
24V DC LED
CRI 90+ / 50,000 hours
Power Supply:
Phase dimming, 0-10V, DALI

Lumens:
Model Specific




COLOUR TEMPERATURE



CANOPY
15 x 5cm / 6” x 2”
Adjustable drop length:
244cm / 96”



FINISHES
BLACK (BK) WHITE (WH) RAW (RA) BRASS (BR) COPPER (CP) CHROME (CH)


CUSTOM
We are happy to support and collaborate further customization of our luminaires for larger scale projects.

For further enquiries, please get in touch with us at info@a-n-d.com



MATERIALS
Aluminum, Acrylic

MANUFACTURED
Canada

CERTIFICATIONS



______

DOWNLOADS






PIPELINE’S
DESIGN & FUNCTION


The primary function of the Pipeline fixture is to provide diffused even linear light.

The design of the body, all of the components, how it is assembled and how it is suspended serve that purpose, the result is an uncomplicated and very practical and applicable light fixture that is at home in many situations.

— Caine Heintzman
